GUEST

Dynaplate, Bonding Use

Name: Dynaplate, Bonding Use
Brand: GUEST
SKU: 377010
Price: 124.99 USD
Availability: InStock

Model # 377010 Mfg # 4006

$124.99

Advice & How-To

GUEST

Dynaplate, Bonding Use

Model # 377010 Mfg # 4006

$124.99

Advice & How-To

−

Complete Your Purchase

GUEST

Dynaplate, Bonding Use

$124.99

SIERRA

Spade Lug Terminals, Red

$11.99

ANCOR

6 AWG Primary Wire by the Foot

$0.24

WEST MARINE

Liquid Electrical Tape

$14.49

CORROSION BLOCK

Corrosion Block, 12 oz. Aerosol

$27.99

PETTIT PAINT

Dolfinite Bedding Compound

$89.99

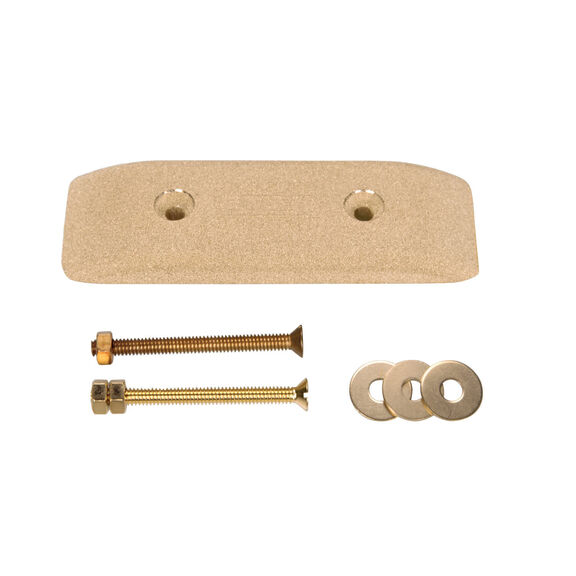

Bronze grounding plates replace yards of copper foil. Looks like a solid bronze plate, but actually a porous matrix of bronze spheres, presenting the same effective electrical surface as a much larger expanse of copper foil. Use as electronic ground for SSBs, Lorans and ham transceivers, or as a ground reference in bonding systems. Includes gold-plated bronze flathead fasteners and silver contact paste for superior conductivity. Plates have tapered ends and rounded edges for reduced turbulence.

Standard Dynaplate

Part No. 4006

Dimensions: 6.0"W x 2.0" H x 0.50" D

Mounting Holes: 2-1/2" center to center

Mounting Hardware:1-3" Gold plated bolt and nut, 1-3" Bronze bolt and nut, 3 copper washers

Weight: 3 Lbs.

Use for basic bonding and grounding
Improves performance of electronics and reduces RF interference
Offers the best path for hull bonding without long runs of copper foil
Equivalent to 12 square feet of copper foil
Provides a direct, low resistance path for improved lighting protection
Deters electrolysis and galvanic corrosion
Sintered porous bronze sphere construction for maximum conductivity in a compact size
Low drag, non fouling shape
Easy to install
Easy to clean with wire brush
Conforms to ABYC standards
