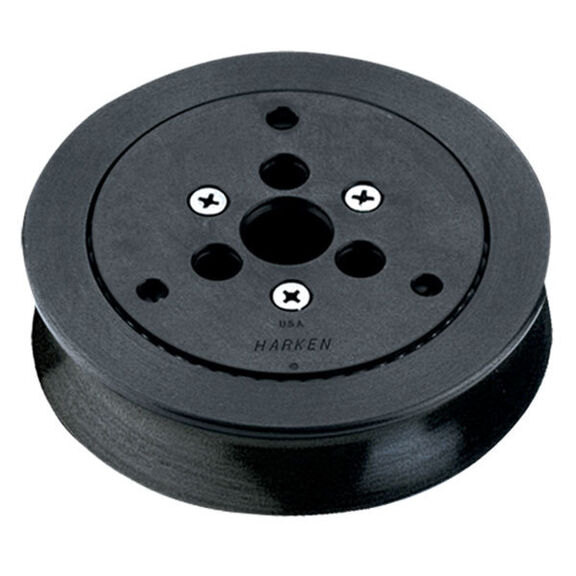

140mm Sheave
Model #
6582480
Mfg #
519
$879.99
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
Quantity not available. Please adjust.
−
+
Complete Your Purchase
Big Boat sheaves are available for special applications as well as for replacement sheaves in Big Boat blocks. Made of hardcoat-anodized, PTFE-impregnated 6061-T6 aluminum, sheaves feature Torlon® rollers to carry high radial loads and carbon-black Delrin
® balls to support sideloads and provide UV protection.
- Sheave diameter (mm): 140 mm
- Sheave diameter (in): 5 1/2 in
- Width (mm): 29 mm
- Width (in): 1 1/8 in
- Weight (g): 765 g
- Weight (oz): 27 oz
- Center pin diameter (mm): 22.28 mm
- Center pin diameter (in): 7/8 in
- Fasteners (mm): 10 mm
- Maximum line diameter (mm): 22 mm
- Maximum line diameter (in): 7/8 in
- Maximum working load (kg): 4127 kg
- Maximum working load (lb): 9100 lb
- Breaking load (kg): 8254 kg
- Breaking load (lb): 18200 lb
Mount Type
Complementary Hardware
Safe Working Load
9100 Pounds
Type
Spare Sheave
Sheave Diameter
140 mm
