22mm Upright Lead Micro Block

22mm Upright Lead Micro Block

3.9 out of 5 Customer Rating
-
+
Availability
  • In Stock
Fulfilled by Vendor, typically 2-3 weeks.

Vendor Shipping Details

This item will be fulfilled from the vendor. Delivery time varies – typically 2–3 weeks.

Restrictions: This item does not ship to a PO Box, APO, FPO, DPO or international address. Expedited shipping is not available.

West Marine will email you when your order ships from the vendor.

$20.99
This item is currently unavailable.
Enter your email address to be added to the waitlist.
Model # 407379 Mfg # 243
Truck Freight

Truck Freight is used to ship items that exceed standard shipping limitations on weight and/or size. Delivery is only applicable within the contiguous United States. Additional shipping fees apply. Signature required for receipt of shipment.

Warning Hazard shipping
Item Can only Ship to Store

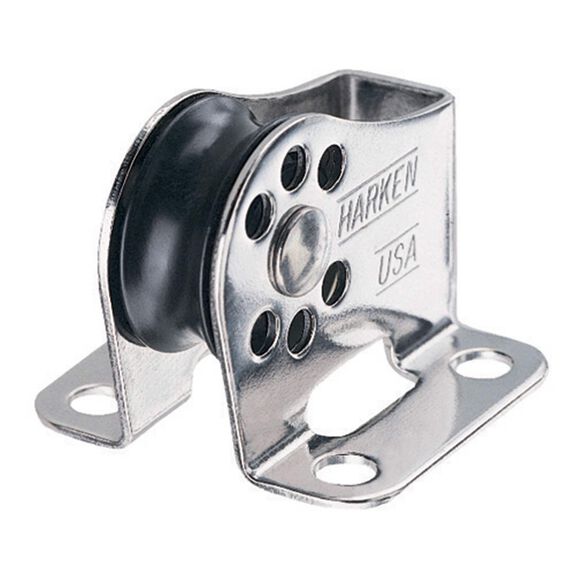

Harken 22mm Upright Lead Micro Block is excellent for leading control lines aft from the base of the mast.

Low-friction Micro Blocks are extremely lightweight, free-running and compact. Designed for any number of uses on dinghies and for lightly loaded control lines on boats of all sizes. Derlin ball bearings are UV stablized with carbon black for maximum protection and stainless steel sideplates add strength. Use inside masts, booms, lead car returns and tackle. Uses #10 fasteners (sold separately).

Key Features

  • Extremely lightweight, free-running blocks
  • Designed for use on dinghies or for lightly-loaded control lines on boats of all sizes
  • Blocks are compact and Low-friction
  • Polished 316 stainless steel
  • Delrin® ball bearings
  • Sheave Diameter: 7/8" (22 mm)
  • Max. Line Diameter: 1/4" (6 mm)
  • Max. Working Load (MWL): 200 lb. (91 kg)
  • Breaking Load: 1200 lb. (544 kg)
  • Weight: 1 oz. (28 g)
  • Length: 1 1/2" (38 mm)
Ball Bearings Delrin
Becket No Becket
Diameter 1/4 Inch or 6 mm
Direction Any
Integral Cleat No Integral Cleat
Length 1 1/2 Inches
Mount Type Mechanical Fasteners
Ratchet Non Ratcheting
Safe Working Load 200 Pounds
Type Single Upright
Weight 1 Ounce
Sheave Diameter 22 mm
