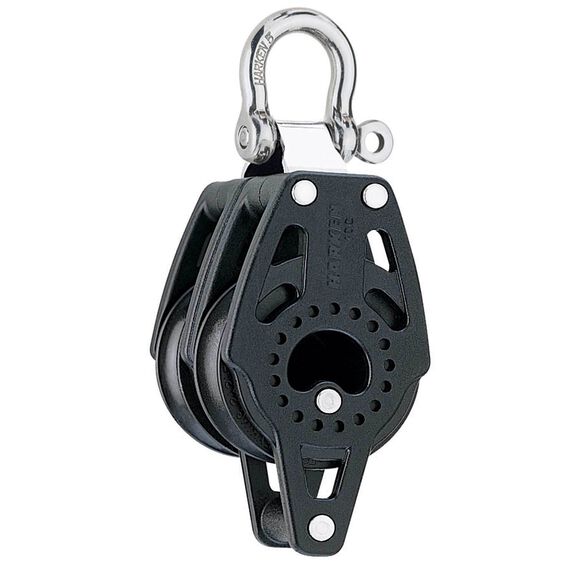

40mm Carbo Air® Double Block with Becket, Fixed

LOWEST PRICE OF THE SEASON
40mm Carbo Air® Double Block with Becket, Fixed
4.2 out of 5 Customer Rating
Model # 200209 Mfg # 2643
LOWEST PRICE OF THE SEASON
Model # 200209 Mfg # 2643
Quantity not available. Please adjust.
Temporarily Out of Stock
Email Icon
Thank you! We'll let you know when it's back in stock.
-
+

Harken 40mm Carbo Air® Double Block with becket for a highload 4:1 or 5:1 purchasing system.

Low-friction Carbo AirBlocks® are lightweight, strong, reliable—and economical. Consistently 30% lighter and 60% stronger than equivalent Classic blocks. The sideplates are UV-stabilized, high-strength resin and designed for small-diameter lines favored by racers. Good for jib and mainsheet systems on high-performance dinghies, and for high-load control lines on small keelboats.

Recipient of both the Dame Award and Sail Magazine’s Freeman-Pittman Award for innovation, this innovative line of blocks turns fiber-reinforced composite construction into a reliable strength-to-weight ratio you can depend on. Companions to the popular Harken Black Magic block line, these small, compact blocks work well with very high working loads for easy trimming.

Key Features

  • High strength-to-weight ratio block
  • Harken’s most innovative blocks
  • 30% lighter, 60% stronger than equivalent conventional blocks
  • Smaller block for jib and mainsheet systems on high-performance dinghies
  • Use for high-load control lines on small keelboats
  • Stainless steel swivel shackle
  • Sheave Diameter: 1 9/16" (40 mm)
  • Max. Line Diameter: 3/8" (10 mm)
  • Max. Working Load (MWL): 970 lb. (440 kg)
  • Breaking Load: 2380 lb. (1080 kg)
  • Weight: 3.4 oz. (90 g) with Shackle
  • Length: 4 5/16" (110 mm)

Ball Bearings Plastic
Becket Becket
Diameter 3/8 Inch or 10 mm
Direction Any
Integral Cleat No Integral Cleat
Length 4 3/16 Inches
Mount Type Side Shackle
Ratchet Non Ratcheting
Safe Working Load 970 Pounds
Type Double
Weight 2.9 Ounces
Sheave Diameter 40 mm
