45 mm Tulip Vertical Fixed Block
Model #
24112757
Mfg #
9030
$99.99
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
New
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
Quantity not available. Please adjust.
−
+
Complete Your Purchase

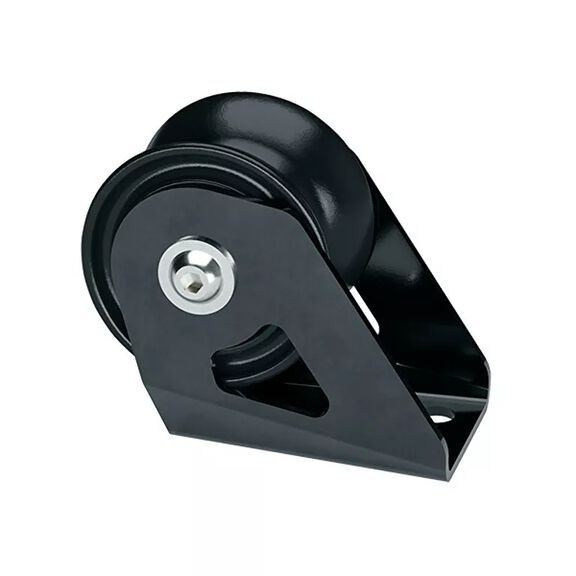

HARKEN YACHT FITTINGS 45 mm Tulip Vertical Fixed Block
The 45 mm Tulip Vertical Fixed Block is a specialized yacht rigging component engineered to streamline deck hardware installations. Part of Harken's Tulip series, this vertical fixed block integrates the functionality of a block, baseplate, and attachment hardware into a single compact unit, reducing installation complexity and weight.
Key Features
- 45 mm sheave diameter (1 3/4 inch) with maximum line diameter of 12 mm (1/4 inch)
- Maximum working load of 2,750 lbs (1,247 kg); breaking load of 5,500 lbs (2,495 kg)
- Compact vertical orientation: 69 mm length × 42 mm width × 57 mm height
- Lightweight at 187 grams (6.6 ounces) for minimal structural impact
- Secured with three 6 mm button head stainless steel fasteners (A4 or A2 grade)
- Eliminates need for separate baseplate and shackle attachments
- Designed for deck-mounted installation in big boat and cruising applications
Breaking Strength
5500 lb
Fastener Type
Button head
Height
57 mm
Length
69 mm
Line Diameter
12 mm
Safe Working Load
2750 lb
Style
Tulip
Type
Block
Weight
187 g
Width
42 mm
Sheave Diameter
45 mm
