45 mm Tulip Crossover Block
Model #
24112849
Mfg #
9039
$199.99
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
New
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
Quantity not available. Please adjust.
−
+
Complete Your Purchase

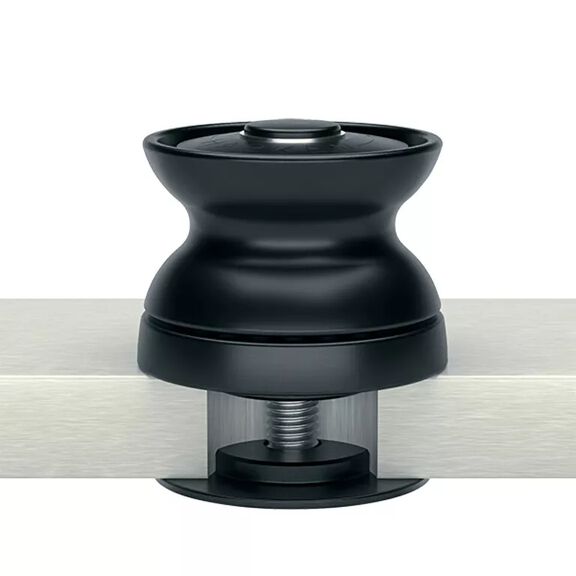

HARKEN YACHT FITTINGS 45 mm Tulip Crossover Block
Crossover blocks provide a cleaner, more efficient deck by routing lines to winches on the opposite side of the cabin house. These blocks feature built-in risers and sculpted backing plates that protect cored decks with large, strong bases. The tulip sheave design helps sailors adjust and cleat multiple lines using the smallest possible number of cleats, reducing weight while improving performance as lead angles become more acute.
Key Features
- 45 mm tulip sheave for efficient line management at acute angles
- Maximum working load: 907 kg (2000 lb)
- Breaking load: 1814 kg (4000 lb)
- Compact height of 37 mm (1 7/16 in)
- Accommodates line diameter up to 12 mm (1/2 in)
- Weight: 131 g (4.6 oz)
- 48 mm (1 7/8 in) base diameter for deck protection
- Part Number: 9039
- Easy installation with built-in risers and backing plates
Breaking Strength
1814 kg
Height
37 mm
Safe Working Load
907 kg
Weight
131 g
,
4.6 oz
Sheave Diameter
45 mm
