60 mm Tulip Over-the-Top Block
Model #
24112799
Mfg #
9034
$239.99
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
New
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
Quantity not available. Please adjust.
−
+
Complete Your Purchase

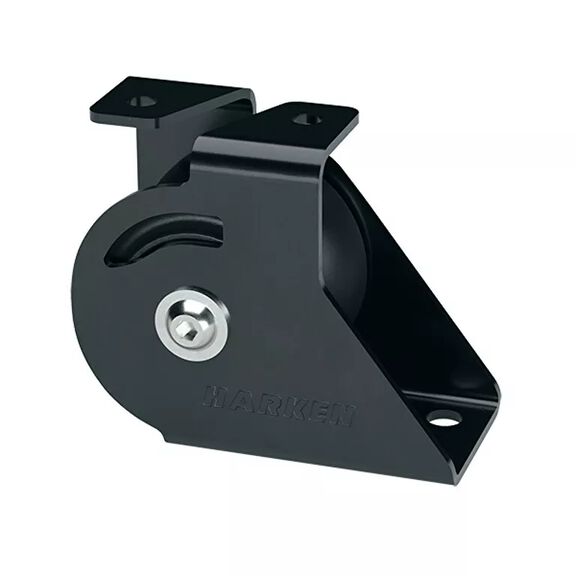

HARKEN YACHT FITTINGS 60 mm Tulip Over-the-Top Block
Over-the-top blocks lead lines aft over cabin houses, coamings, and splashguards. This 60 mm Tulip model features high-load sheaves and is engineered to facilitate full 90-degree deflections in rope path, facilitating horizontal to vertical transitions over cabintops to cockpit floors on offshore catamarans.
The unique divides design allows for one line to be substituted for another in the middle of a system rather than requiring a complete re-rig through a rope clutch. This makes the block an excellent choice for complex deck systems where flexibility and ease of maintenance are essential.
Key Features
- 60 mm sheave diameter with 2 3/8 inch equivalent
- Accommodates maximum line diameter of 14 mm (9/16 inch)
- Maximum working load of 2268 kg (5000 lb)
- Breaking load capacity of 4536 kg (10000 lb)
- Lightweight construction at 456 grams (16 oz)
- Three fastener points using 8 mm (5/16 inch) fasteners
- Compact dimensions: 92 mm length × 54 mm width × 53 mm height
- Divided block design for mid-system line substitution
- Suitable for offshore racing and bluewater cruising applications
Breaking Strength
4536 kg
Diameter
60 mm
Height
53 mm
Length
92 mm
Safe Working Load
2268 kg
Type
Tulip Over-the-Top Block
Weight
456 g
Width
54 mm
Sheave Diameter
60 mm
