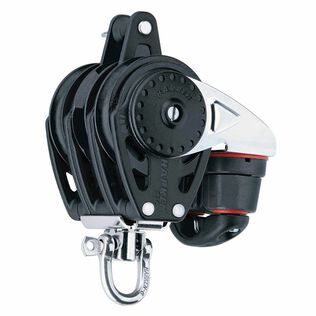

57mm Carbo Ratchamatic Triple Block with Cam
Complete Your Purchase
Harken 57mm Carbo® Ratchamatic Triple Block with Cam Cleat for controlled easing of a 10:1 purchasing system.
Carbo Ratchets allow sailors to hand-hold loaded lines and offer balance between holding power and controlled easing. Lightweight Carbo Ratchets are available in 40mm, 57mm and 75mm sizes. All the Carbo Ratchets feature a recessed On-Off switch that is easily operated from either side. The 40mm cam-arm versions work in ratchet mode only. Commonly 57mm blocks are for jibsheets and spinnakers on medium dinghies.
The 40mm, 57mm and 75mm Carbo Ratchamatic® is adjustable for many applications and weather conditions. The load-sensing ratchet block rolls freely in both directions under low loads, then engages the ratchet automatically as loads increase. With 180 degree wrap, you get a 10:1 holding power.
Key Features
- Adjustable ratchet at higher or lower loads
- Eight-facet sheave holds line securely
- Ratchet blocks are hand and crew savers
- Allows a line to be eased instantly with control
- On/Off switch allows the ratchet to be turned off in light air
- Hardkote-anodized aluminum sheaves
- Stainless steel swivel shackle
- Sheave Diameter: 2 1/4" (57 mm)
- Max. Line Diameter: 3/8" (10 mm)
- Max. Working Load (MWL): 1500 lb. (680 kg)
- Breaking Load: 3750 lb. (1700 kg)
- Weight: 14.9 oz. (421 g)
- Length: 4 1/16" (103 mm)
