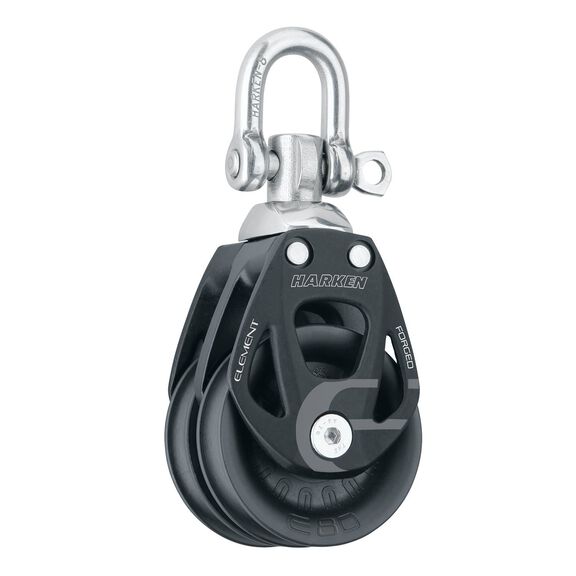

80 mm Element Double Block with Swivel Shackle
Model #
18918458
Mfg #
6296
$220.99
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
Quantity not available. Please adjust.
−
+
Complete Your Purchase
Element blocks introduce sideplates that combine forged aluminum and compound curves for strength. They are simultaneously contemporary and very robust. Element's design pairs the minimum amount of metal required to protect the sheave with a proven journal bearing. So size for size, Element is priced significantly lower, than our previously least expensive blocks.
Sideplates are hardcoat-anodized to resist corrosion. A tough composite bearing sheave resists corrosion for a long service life.
| Specifications | |
|---|---|
| Sheave | 80 mm / 3 1/8" |
| Length | 191 mm / 7 1/2" |
| Weight | 915 g / 32 oz. |
| Shackle Pin | 12 mm / 1/2" |
| Maximum Line | 16 mm / 5/8" |
| Maximum Working Load | 2750 kg / 6064 lb. |
| Breaking Load | 5500 kg / 12128 lb. |
Breaking Strength
5500 kg / 12128 lb.
Length
191 mm / 7 1/2"
Weight
915 kg / 32 ounces
