Gizmo Double Through-Deck Bushing 10mm
Model #
24113797
Mfg #
9072.1828
$77.99
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
New
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
Quantity not available. Please adjust.
−
+
Complete Your Purchase

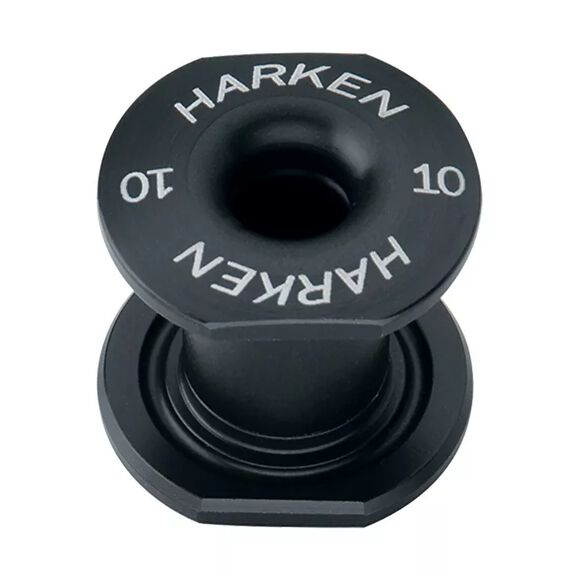

HARKEN Gizmo Double Through-Deck Bushing 10mm
Double-sided through-deck bushings are engineered for structural load handling and non-fair lead applications. These bushings excel at protecting lines from wear while also providing line separation on yacht decks. The design allows the bushing to handle loading on both sides of the deck and thread into themselves from either the top or bottom, making installation flexible and straightforward.
These bushings are part of the Gizmos Through-Deck Bushings and Padeye Kits product line and are ideal for soft-attach loop installations. With a maximum working load of 700 kg (1,540 lb), they provide reliable structural support in demanding marine environments.
Key Features
- Double-sided through-deck design for bidirectional loading
- Maximum working load: 700 kg (1,540 lb)
- Center hole diameter: 10 mm
- Suitable for deck thickness: 10–13 mm
- Flange diameter: 31.2 mm
- Shaft outer diameter: 17 mm
- Drill size: 18 mm (23/32 in)
- Weight: 13.9 g (0.49 oz)
- Manufactured in USA
- Compatible with soft-attach loop installations
Application
Yacht/Marine fittings
Diameter
10 mm
Material
Metal
Safe Working Load
700 kg
Size
10 mm
Type
Through-Deck Bushing
Weight
13.9 g
