Gizmo 10 mm Double Through-Deck Bushing - 10-13 mm Deck
Complete Your Purchase

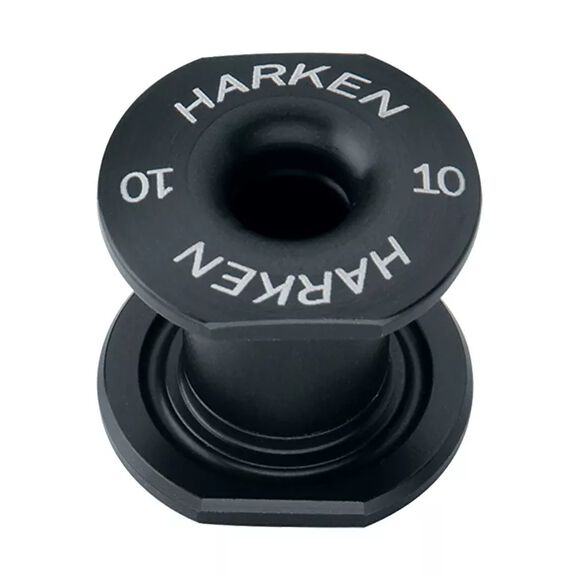

HARKEN Gizmo 10 mm Double Through-Deck Bushing - 10-13 mm Deck
Double through-deck bushings are precision-engineered marine hardware designed for protecting and organizing running rigging on decks. This 10 mm variant is suitable for deck thicknesses between 10 and 13 mm, making it ideal for a wide range of modern sailing vessels. The double-sided design means it threads into itself from both the top and bottom of the deck, providing superior structural integrity compared to single through-deck bushings.
These bushings excel at handling non-fair leads and loading on both sides of the deck, which makes them especially valuable for complex deck layouts where line routing must be both functional and protected from chafe. The design separates lines effectively while protecting them from wear against deck edges and other lines. Installation is straightforward, requiring only an 18 mm drill hole.
Key Features
- 10 mm center hole diameter accommodates ropes and lines up to approximately 10–13 mm in diameter
- Double-sided construction threads from top and bottom for maximum deck holding power
- Anodized aluminum construction provides corrosion resistance in salt water environments
- Maximum working load of 700 kg (1,540 lb) handles demanding applications
- Compact flange diameter of 31.2 mm (1.228 in) fits tight deck spaces
- Suitable for deck thicknesses from 10 to 13 mm (0.394–0.512 in)
- Requires 18 mm (23/32 in) drill hole for installation
- Made in the USA with HARKEN's quality standards
Perfect for soft-attach loop installations, halyard organizers, and any application requiring protected, separated line routing on deck.
