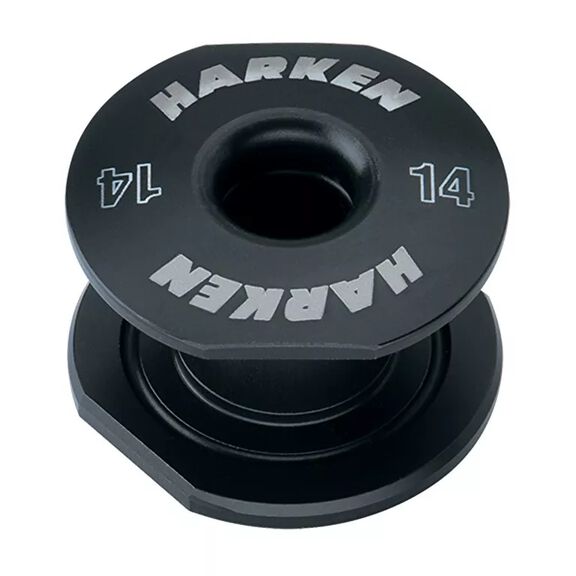

Harken Gizmo 14 mm Double Through-Deck Bushing - 13-18 mm Deck
Double-sided through-deck bushings are more structural than single through-deck bushings and can handle non-fair leads or loading on both sides of the deck. They thread into themselves from the top and bottom of the deck, providing superior strength and reliability for demanding applications.
Perfect for installing soft-attach loops to protect line from wear and also to separate line. The double through-deck design distributes loads evenly across both sides of the deck surface, making it ideal for high-stress areas where lines experience significant wear or where multiple lines need separation.
Key Features
- Size: 14 mm with center hole diameter of 14 mm (0.551 in)
- Deck thickness range: 13-18 mm (0.512-0.709 in)
- Flange diameter: 47.6 mm (1.874 in)
- Shaft outer diameter: 24 mm (0.945 in)
- Drill size: 25 mm (31/32 in)
- Maximum working load: 2,300 kg (5,060 lb)
- Weight: 41.5 g (1.46 oz)
- Material: Anodized aluminum
- Country of origin: USA
- Comprehensive documentation available in multiple languages
Diameter
14 mm
Material
Anodized Aluminum
Maximum Force
2,300 kg
Safe Working Load
2,300 kg (5,060 lb)
Thickness
13-18 mm
Type
Double Through-Deck Bushing
Weight
41.5 g
