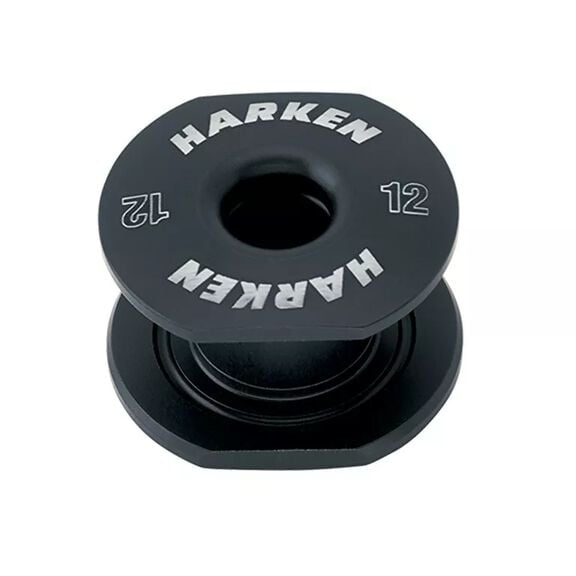

Gizmo 12 mm Double Through-Deck Bushing - 18-28 mm Deck
Model #
24113847
Mfg #
9073.1828
$97.99
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
New
New
Gizmo 12 mm Double Through-Deck Bushing - 18-28 mm Deck
Model #
24113847
Mfg #
9073.1828
$97.99
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
Quantity not available. Please adjust.
−
+
Complete Your Purchase
HARKEN Gizmo 12 mm Double Through-Deck Bushing - 18-28 mm Deck
Double-sided through-deck bushings are ideal for the installation of soft-attach loops, which serve to safeguard line from wear and provide separation between lines. These bushings are more structural than single through-deck versions and can handle non-fair leads or loading on both sides of the deck. They feature self-threading design, threading into themselves from both the top and bottom of the deck for a secure, integrated installation.
Key Features
- Self-threading design from top and bottom of deck
- Handles non-fair leads and bilateral loading
- Protects line from wear and chafing
- Separates multiple lines
- Suitable for deck thickness 18-28 mm
- Anodized aluminum construction
- Maximum working load: 1,500 kg (3,300 lb)
- Compatible with Gizmo padeye kits
For permanent installations, coat the side of the bushing with adhesive such as Tef-Gel or grease to assist threading. Strictly follow all installation instructions to avoid accident, damage to vessel, personal injury, or death.
Diameter
12 mm
Material
Anodized aluminum
Outside Diameter
41 mm
Safe Working Load
1500 kg
Size
12 mm
Weight
31.1 g
