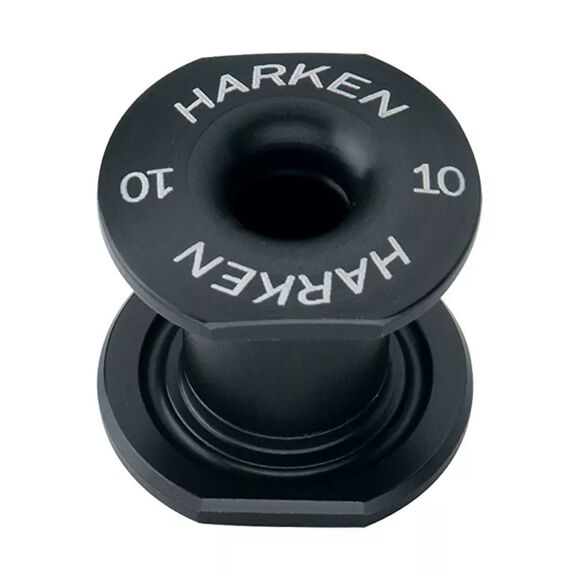

HARKEN Gizmo 10 mm Double Through-Deck Bushing - 13-18 mm Deck
Double-sided through-deck bushings are engineered to provide superior structural integrity compared to single bushings. These fittings are perfect for installing soft-attach loops that protect line from wear while also serving to separate line on deck. The design allows the bushing to thread into itself from both the top and bottom of the deck, creating a secure, reliable connection.
Key Features
- 10 mm center hole diameter for line passage
- Designed for deck thicknesses from 13 mm to 18 mm
- Maximum working load of 700 kg (1,540 lb)
- Overall flange diameter of 31.2 mm
- Anodized aluminum construction for corrosion resistance
- Double-sided design handles non-fair leads and loading on both sides of the deck
- Shaft outer diameter of 17 mm requires an 18 mm drill hole
- Wrench flats of 28 mm for easy installation
- Manufactured in the USA with full manufacturer warranty
These bushings are ideal for sailors seeking reliable, durable hardware that offers both functional protection and structural reinforcement. The double-through design ensures even load distribution and enhanced longevity compared to single-sided alternatives.
Material
Anodized aluminum
Safe Working Load
700 kg
Weight
15.2 g
