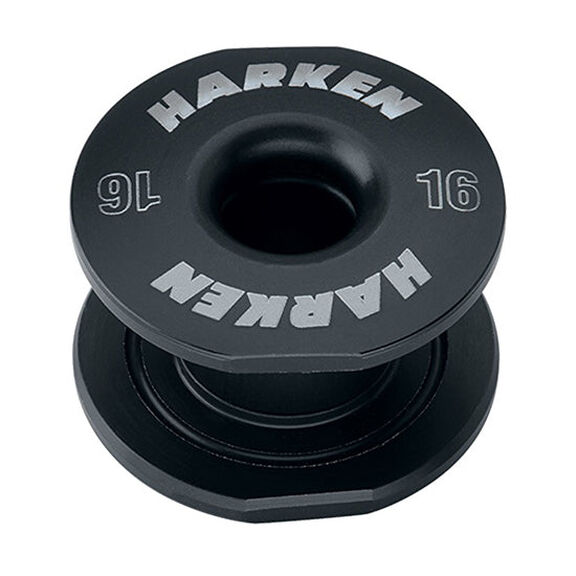

Gizmo 16 mm Double Through-Deck Bushing
Model #
24113938
Mfg #
9075.1318
$127.25
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
New
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
Quantity not available. Please adjust.
−
+
Complete Your Purchase
Z-SPAR
$87.49
-
$366.99
Price reduced from
$349.99
to
-
Price reduced from
$366.99
to
HARKEN YACHT FITTINGS Gizmo 16 mm Double Through-Deck Bushing
The Gizmo Double Through-Deck Bushing is engineered for structural support and non-fair leads with balanced loading on both sides of the deck. It threads from the top and bottom of the deck, eliminating the need for fasteners and creating a seamless installation. This design is ideal for installing soft-attach loops that protect line from wear while separating multiple lines effectively.
Constructed from anodized aluminum, this bushing is built to withstand marine environments and deliver reliable performance. The 16 mm center hole accommodates standard rigging applications, while the robust flange diameter ensures secure deck mounting.
Key Features
- Double-sided threading for installation from top and bottom of deck
- Anodized aluminum construction for corrosion resistance
- 16 mm center hole diameter with 26.2 mm maximum outer shaft diameter
- Maximum working load of 3,400 kg (7,480 lb)
- Accommodates deck thicknesses from 13–18 mm
- Flange diameter of 48 mm for secure mounting
- 27 mm drill size for installation
- Manufactured in the USA
Diameter
48 mm
Material
Anodized aluminum
Outside Diameter
26.2 mm
Safe Working Load
3,400 kg
Size
16 mm
Type
Double Through-Deck Bushing
