This product is not longer available, we recommend a similar product instead:
LED Converter 90-264V AC to 24V DC 100W
Model #
17188962
Mfg #
IL-LED100WDC24V
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.

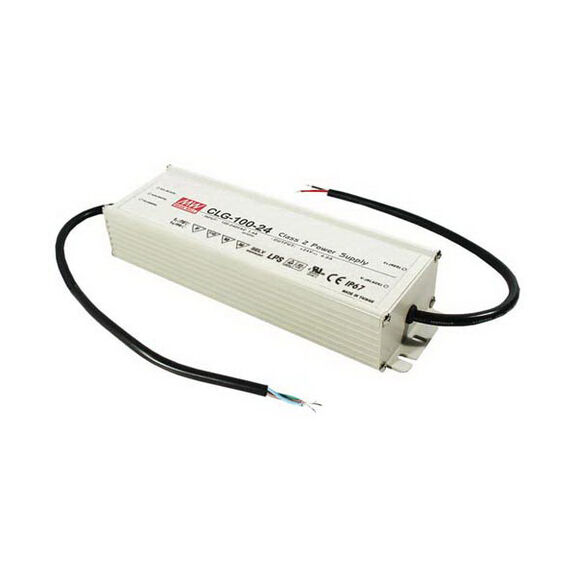

LED Converter 90-264V AC to 24V DC 100W
Model #
17188962
Mfg #
IL-LED100WDC24V
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
−
+
This LED converter is a voltage-regulated AC to DC power supply. It features resettable short circuit protection, thermal regulation & adjustable over-current protection. It accepts a universal input voltage of 90 to 264V AC & supplies a steady current-controlled output of 24V DC allowing safe & reliable operation of your low voltage LED devices. This LED converter allows small DC LED products to be safely used when the only supply voltage available is line voltage AC.
Features & Benefits:
- Universal supply voltage: 90 to 264 Volts 47/63Hz
- Constant-current control
- Power factor correction
- Fully isolated IP64 level plastic case
- Adjustable over current protection
- Rated Power Capacity: 100 Watts
- Maximum Ambient Temperature: 122 Deg F
- Maximum Housing Temperature: 176 Deg F
- Dimensions: 2.68" Width x 1.54" Height x 8.74" Length
- Electrical Protections: Short Circuit, Over Current, Over Voltage, Thermal
- EMC (RFI): FCC Class B/EN 55015/61000, 61547, ENV50204/55024
- Classifications: CE, UL1310 Class 2 Wet Locations, F-rated
- Install Location: Within 30' of last light fixture
Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Amperage
4.16 Amps
Type
AC to DC Converter
Voltage
24 Volts DC
Warranty
Two Years Waterproof
