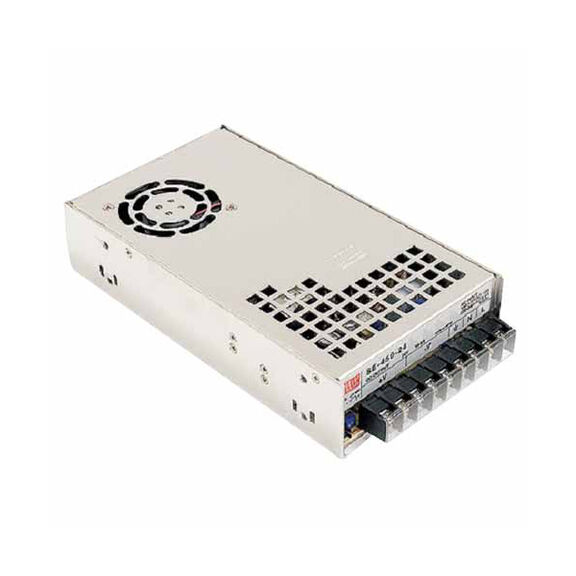

LED Converter 90-264V AC to 24V DC 450W
Model #
17189036
Mfg #
IL-LED450WDC24V
$478.99
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
LED Converter 90-264V AC to 24V DC 450W
Model #
17189036
Mfg #
IL-LED450WDC24V
$478.99
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
Quantity not available. Please adjust.
−
+
Complete Your Purchase
Our highest capacity LED voltage converter, the SE-450 model features a universal selectable AC input (90 to 264V AC) & adjustable DC output (21.6 to 28.5V DC) providing clean voltage-regulated DC power; ideal for sensitive electronics & LED lighting.
Features & Benefits:
- Selectable AC input
- Adjustable DC output
- Short circuit & over-current protection with auto-reset
- Over temperature protection with auto-reset
- Active surge current limiting
- Forced air cooling - DC ball bearing fan
- Compliant to worldwide safety regulations
- Rated Power Capacity: 450 Watts
- Efficiency: 86%
- Max. Ambient Temp.: 122 Deg F (50 Deg C)
- Max. Housing Temp.: 176 Deg F (80 Deg C)
- Dimensions: 8.86" x 4.88" x 1.97"
- Electrical Protections: Short Circuit, Over Current, Over Voltage, Thermal
- EMC (RFI): FCC Class B/EN 55015/61000, 61547, ENV50204/55024
- Classifications: CE, UL60950, ROHS
- Mounting Method: Chassis
- Install Location: Within 30' of last light fixture
- Ingress Protection: IP20
Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Amperage
18.75 Amps
Type
AC to DC Converter
Voltage
24 Volts DC
Warranty
Two Years Waterproof
