Lewmar Size 60 Pilot Hatch, Type III
The Lewmar Size 60 Pilot Hatch is engineered for installation on the wheelhouse or cockpit canopy of a power craft, and its clean styling complements the Low Profile and Medium Profile Hatch ranges from Lewmar. The hatch slides open smoothly thanks to track technology borrowed from Lewmar's racing hardware systems, ensuring minimum friction throughout the full range of motion.

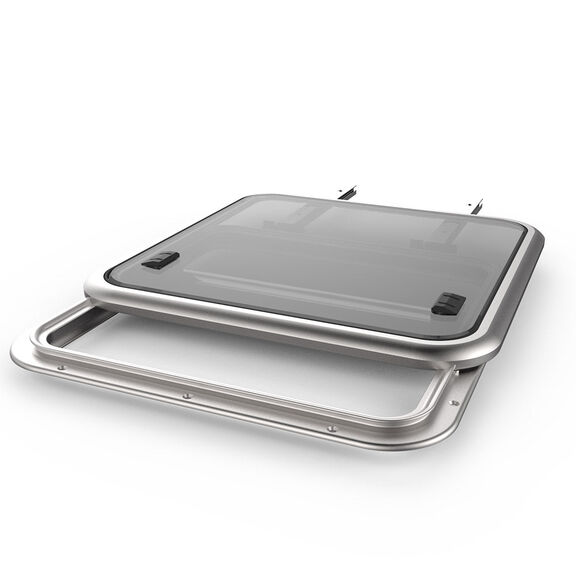

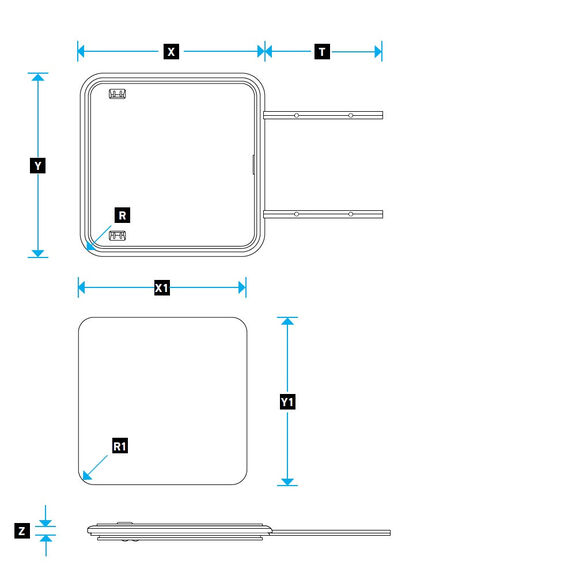

The unit features an anodized silver aluminum frame surrounding a smoke grey acrylic glazing panel, delivering both durability and a refined appearance. External dimensions measure 22-7/8 in. (581 mm) in length and 22-5/7 in. (577 mm) in width, with a required deck cutout of 19-15/16 in. x 19-15/16 in. (507 x 507 mm). The overall installed height is just 1-1/7 in. (29 mm), keeping a low profile on deck. The lower frame flange depth is 9/16 in. (15 mm), and corner radii measure 2-7/8 in. (73 mm) on the outer frame and 1-11/16 in. (42.5 mm) at the cutout. The sliding track length is 14-2/3 in. (373 mm). The acrylic window is 3/8 in. (10 mm) thick and can be replaced without the use of sealant, simplifying future maintenance.
Operation is intuitive: a single handlebar rotates to seal the hatch securely, and the handle remains within easy reach at all times. The hatch can be secured at a 5 cm partial opening when full ventilation is not needed. Lewmar's unique seal system ensures a watertight closure while remaining easy to service in the field. The unit weighs approximately 15.4 lbs and ships free when order qualifies.
Key Features
- Opens enclosed steering positions for improved ventilation
- Single rotating handlebar operation — handle always within reach
- Securable at a 5 cm partial opening for controlled ventilation
- Acrylic panel replaceable without sealant
- Sliding technology derived from Lewmar racing hardware track systems for minimum friction
- Lewmar unique seal system for improved sealing and easy servicing
- Smoke grey acrylic glazing with silver anodized aluminum frame
- Square form factor with 19-15/16 in. x 19-15/16 in. deck cutout
