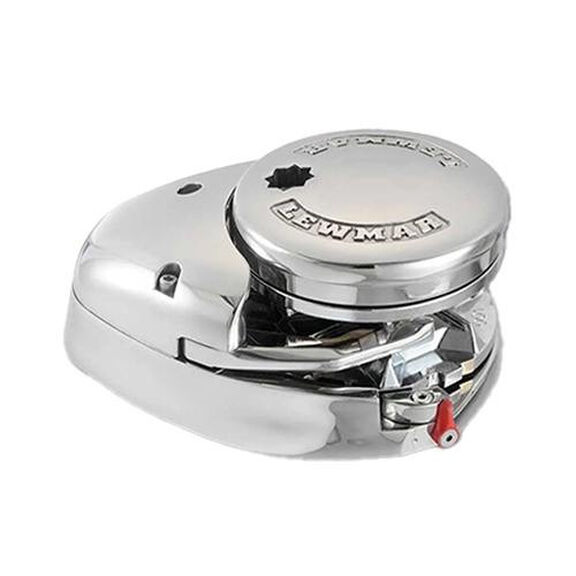

Lewmar V2 Vertical Windlass
Complete Your Purchase
Lewmar V2 Vertical Windlass
Key Features
- Manual Chain Release Free-Fall
- Cone clutch for smooth, easy control
- Fall safe anchor lock
- Robust/reliable worm gearbox

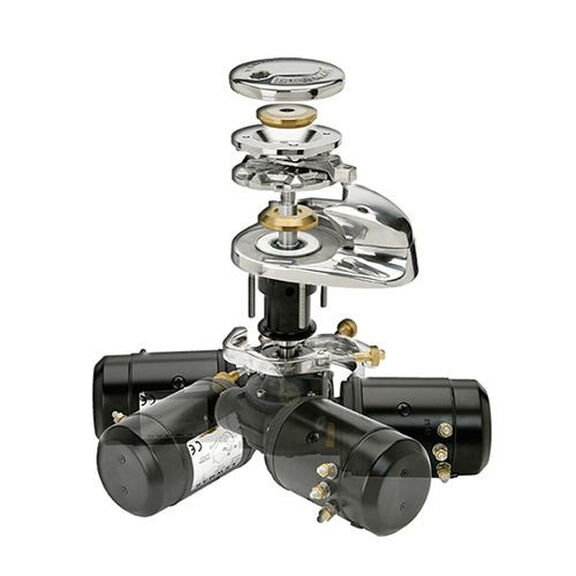

- Optional manual override motor gearbox
- 12 Volt DC system
- Suitable for boats up to 45 feet
- Complete kit with rocker switch, solenoid, and circuit breaker
- Stainless steel construction for durability and corrosion resistance
The V2 Vertical Windlass delivers reliable anchoring performance with a 700W motor and maximum pulling power of 1433 lbs. The cone clutch provides smooth, easy control during anchor retrieval, while the fall-safe anchor lock prevents accidental anchor drop. The robust worm gearbox ensures reliable operation, and an optional manual override provision allows for manual recovery if needed. The complete kit arrives ready for installation with all necessary components: motor/gearbox assembly, control module, deck unit, gypsy kit, windlass handle, circuit breaker, and rocker switch.
Anchor rode compatibility includes 3/8" chain paired with 1/2"-9/16" three-strand rope or 5/8" eight-plait rope. The system operates at 12V DC with normal current draw of 80A and includes a 90A circuit breaker. Maximum line speed is 69 ft/min with a working load of 358 lbs. Approximate weight is 42 lbs.
