Lewmar H2 Gypsy/Drum Windlass 24V 8mm

Lewmar H2 Gypsy/Drum Windlass 24V 8mm

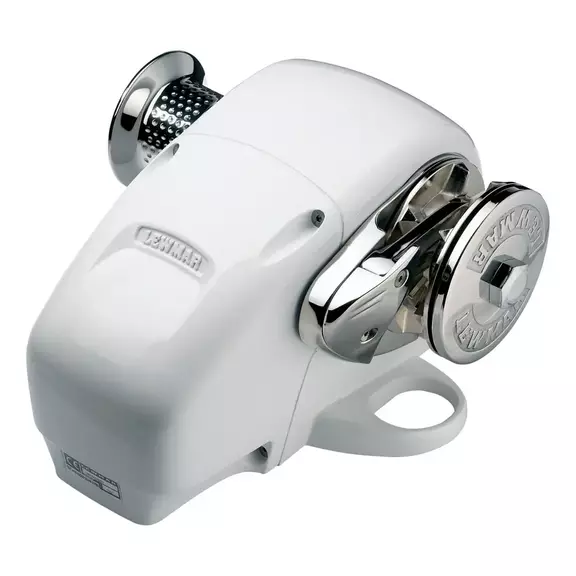

The Lewmar H2 Gypsy/Drum Windlass is part of the stylish H-Series horizontal windlass range, engineered to deliver reliable anchoring performance for sailboats and powerboats up to 14m (48ft). Operating at 24V and calibrated for 8mm (5/16" G4/BBB) chain, this windlass combines proven worm gearbox technology with a compact, integrated design that simplifies both installation and ongoing maintenance.

The integral two-direction contactor is protected within the durable maincase, streamlining the wiring process and reducing the number of external components required. The unit's fully sealed, waterproof construction ensures dependable operation in demanding marine environments while keeping maintenance requirements to a minimum. The aluminum and composite maincase keeps overall weight low, and the stainless steel warping drum features Lewmar's unique Wear and Abrasion Reduction Pattern (WARP) finish for extended service life. A reed switch and magnet are fitted as standard, making the H2 fully compatible with chain counter applications straight out of the box.

Installation is fast and straightforward thanks to the one-piece design, and the included circuit breaker and rocker switch mean the windlass arrives ready to wire up and deploy with minimal additional hardware.

Key Features

• Quick, easy one-piece installation
• Robust horizontal worm motor-gearbox for reliable performance
• Integral two-direction contactor protected by maincase
• Sealed waterproof unit requires minimum maintenance
• Aluminum and composite maincase for reduced weight
• Stainless steel warping drum with Wear and Abrasion Reduction Pattern (WARP) finish
• Reed switch and magnet fitted as standard for chain counter applications
• Includes built-in two-direction contactor, circuit breaker, and rocker switch
• Suitable for boats up to 14m (48ft)
• 24V operation with 8mm chain calibration
