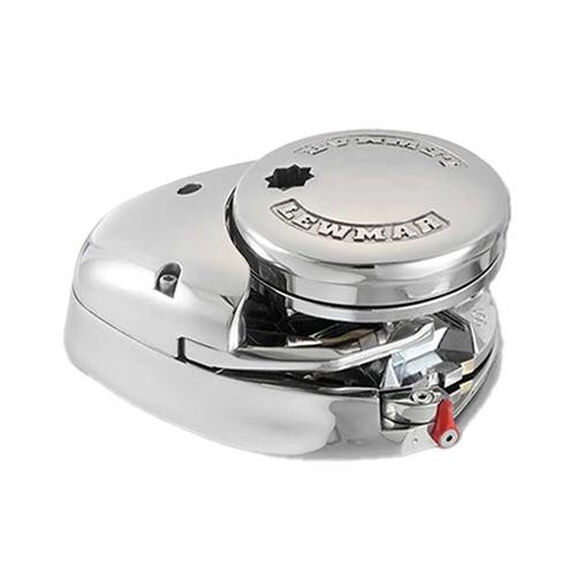

Lewmar V2 Vertical Windlass
The Lewmar V2 Vertical Windlass is a professional-grade 12-volt electric anchoring system built for recreational and commercial marine applications on vessels approximately 30–45 feet in length. Constructed entirely of 316 stainless steel, this windlass delivers reliable performance and exceptional corrosion resistance in saltwater environments.
Key Features
- Manual chain release free-fall mechanism for emergency anchor deployment
- Cone clutch system for smooth, precise control during anchor raising
- Fall-safe anchor lock prevents unintended drift
- Robust and reliable worm gearbox design
- Optional manual override motor gearbox for emergency manual operation
- 12-volt DC power supply suitable for standard marine electrical systems
- Vertical gypsy configuration with 5/16" chain compatibility
- Complete kit includes windlass unit, rocker switch, solenoid, and 90-amp circuit breaker
- Recommended for boats approximately 30–42 feet; suitable for vessels up to 45 feet
- 5-year limited manufacturer warranty
- Control options include helm-mounted rocker switch with optional foot switches and remote control capability
The V2 windlass is compatible with 5/16" G4 high-tensile chain and 8 mm DIN 766 chain, as well as 9/16" (14 mm) three-strand or 8-plait nylon rode. Maximum pulling power reaches approximately 1000 lb, with a normal retrieval speed of 79 ft/min. Operating current draw is approximately 50 amps under normal conditions, with a 70-amp circuit breaker recommended for installation. The complete assembly weighs approximately 42 lbs and is designed for straightforward deck mounting on fiberglass or metal hulls.
