Standard Portlight Size 7RE - Opening, Smoke Acrylic / Silver Frame, White Trim

Lewmar Standard Portlight Size 7RE - Opening, Smoke Acrylic / Silver Frame, White Trim

The Lewmar Standard Portlight Size 7RE is a high-quality opening marine portlight engineered to deliver reliable ventilation and a polished aesthetic on sailboats and powerboats worldwide. Designed to match perfectly with Lewmar hatches, this portlight is a go-to choice for sailors seeking a competitively priced, durable, and easy-to-install solution for cabin ventilation.

The portlight features smoke-tinted acrylic glazing 8 mm thick, set within a silver-anodized frame and finished with white ABS plastic trim. Its round-end (RE) profile ensures a smooth, contemporary look on any cabin side. The opening design allows for fresh-air ventilation when conditions permit, while the robust construction ensures lasting performance in demanding marine environments.

Installation is quick and uncomplicated: the portlight clamps the cabin sides between the inner and outer frames, secured with the twelve M5 x 25 mm screws included in the package. The unit can be sealed with either a marine sealant or closed cell PVC tape to achieve a watertight fit. Compatible hull thickness ranges from 7 mm (1/4 in) minimum to 34 mm (1 3/8 in) maximum, accommodating a wide variety of vessel constructions. Cut-out templates are available at lewmar.com for precise installation guidance.

Each portlight is supplied complete with a flyscreen to keep insects out while maintaining ventilation. It complies with ISO 12216 Category A for opening portlights in Areas II, III, and IV, and for fixed portlights in Areas I, II, III, and IV, meeting the highest standards for offshore sailing vessels. CE approved for Design Category A — Sail & Power, Area 2.

Key Features

• Size 7RE opening standard portlight, 191 x 425 mm overall
• Smoke-tinted acrylic glazing, 8 mm thick
• Silver anodized frame with white ABS plastic trim
• Clamp-fit installation between inner and outer frames
• Compatible hull thickness: 7–34 mm (1/4 to 1 3/8 in)
• Sealable with sealant or closed cell PVC tape
• Supplied with 12 x M5 x 25 mm screws and flyscreen

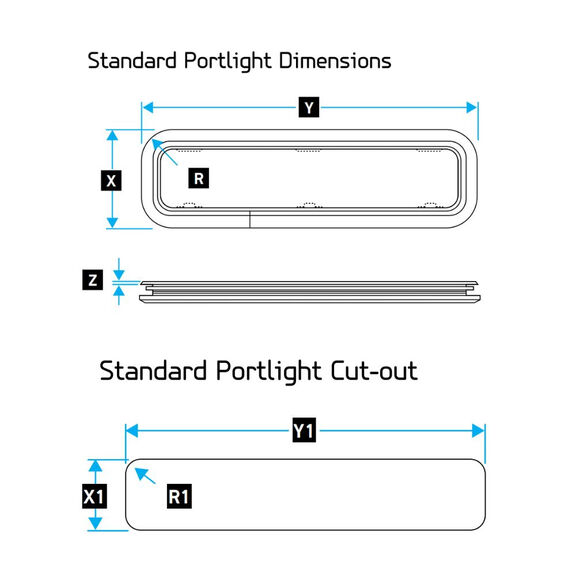

• Cut-out dimensions: 171 x 405 mm (6 3/4 x 15 15/16 in)
• Weight: 5.28 lb / 2.40 kg
• Complies with ISO 12216 Category A, Areas I–IV
• CE Approved, Design Category A — Sail & Power, Area 2
• Compatible with Lewmar hatches
