LSS-2 StructureScan HD Thru-Hull Dual Frequency Transducer
Model #
14274237
Mfg #
000-11029-001
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
LSS-2 StructureScan HD Thru-Hull Dual Frequency Transducer
Model #
14274237
Mfg #
000-11029-001
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
−
+
Enhanced imaging transducer generates three dedicated signals for photo-like images to the left, right and directly beneath your boat.

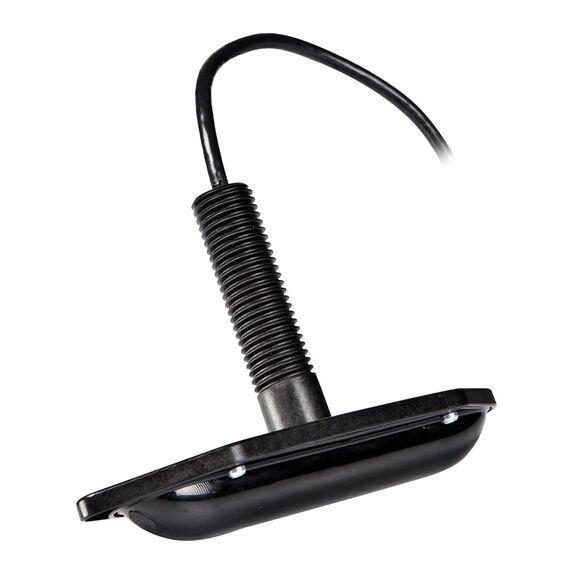

Nylon and stainless steel thru-hull transducer for LSS-2 StructureScan HD is a low profile, low-drag design with built-in water temp sensor.
Specifications
- Style: Thru-hull
- Cable Length: 20' (requires 26mm diameter hole for plug)
- Monitors: Depth and Temperature
- Material: Plastic/stainless steel stem
- Transmit Power: 500W (RMS)
- Frequency: Enhanced 455/800kHz
- Max. Depth: Sidescan: 600' @ 455kHz; 200' @ 800kHz; Downscan: 300'
- Max. Sidescan Speed: Max. 35mph; Marks Objects to 15mph; Optimum Speed 10mph or less
- Max. Downscan Speed: Max. 55mph; Marks Objects to 35mph; Optimum Speed 10mph or less
- Hull Deadrise: 0° to 12°
Type
Thru-Hull
Beam
Structure Scan
Deadrise Angle
0 to 12 Degree
Frequency
455kHz/800kHz
Material
Plastic
Maximum Depth
600 Feet
Sonar
CHIRP Sonar
,
Depth
,
Temperature
Transmit Power
500 Watts
Type
Thru-Hull
