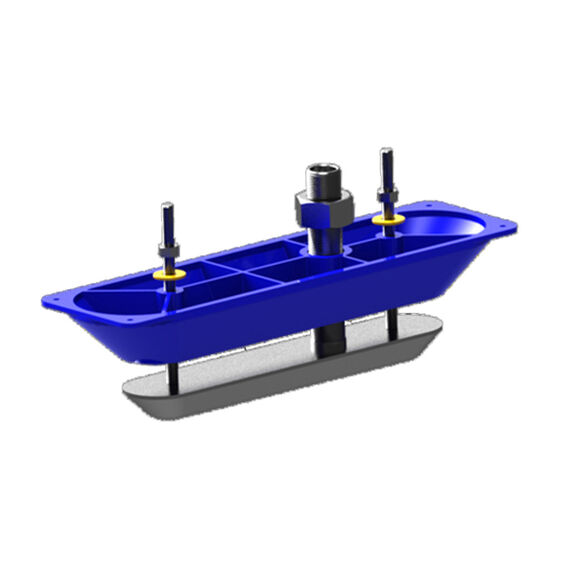

StructureScan® HD Thru-hull Dual Frequency SideScan/DownScan Transducer
Model #
16222622
Mfg #
000-11459-001
$915.00
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
StructureScan® HD Thru-hull Dual Frequency SideScan/DownScan Transducer
Model #
16222622
Mfg #
000-11459-001
$915.00
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
Quantity not available. Please adjust.
−
+
Complete Your Purchase
Enhanced imaging transducer generates three dedicated signals for photo-like images to the left, right and directly beneath your boat.
Nylon and stainless steel thru-hull transducer for LSS-2 StructureScan HD is a low profile, low-drag design with built-in water temp sensor.
Key Features
- Thru-hull Stainless steel transducer for StructureScan® HD Sonar, providing more range and greater resolution
- Thru-hull Stainless steel version delivers extreme target detail, bottom discrimination and bait and game fish separation at depths to 300' and a wider range of 600' side-to-side coverage
- Packed with an enhanced dual-frequency element array that operates at 455kHz and 800kHz
- This sturdy, stainless steel transducer is resistant to the electrical forces in the environment where it will be used
- Low-profile design minimizes drag, provide exclusive three-channel beam, port and starboard SideScan plus DownScan Imaging™ technology
- Includes a high-performance fairing that will give you Structure performance at speeds up to 35 mph
- Features a 30' transducer cable
Specifications
- Style: Thru-hull
- Cable Length: 30' (requires 26mm diameter hole for plug)
- Monitors: Depth and Temperature
- Material: Stainless steel
- Transmit Power: 500W (RMS)
- Frequency: Enhanced 455/800kHz
- Max. Depth: Sidescan: 600' @ 455kHz; 200' @ 800kHz; Downscan: 300'
- Max. Sidescan Speed: Max. 35mph; Marks Objects to 15mph; Optimum Speed 10mph or less
- Max. Downscan Speed: Max. 55mph; Marks Objects to 35mph; Optimum Speed 10mph or less
- Hull Deadrise: 0° to 12°
Type
Thru-Hull
Deadrise Angle
0 to 7 Degree
Frequency
455/800kHz
Material
Stainless Steel
Maximum Depth
1000 Feet
Sonar
CHIRP Sonar
,
Depth
,
Temperature
Transmit Power
500 Watts
Type
Thru-Hull
