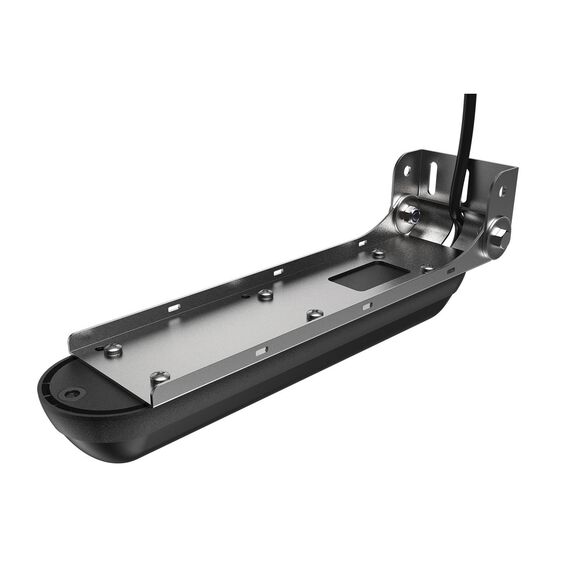

Active Imaging Transom-Mount Transducer

Active Imaging Transom-Mount Transducer image number null
Active Imaging Transom-Mount Transducer image number null

Active Imaging Transom-Mount Transducer

5 out of 5 Customer Rating
  • Back Order
Ships from supplier, typically 2-3 weeks.

Vendor Shipping Details

This item will be fulfilled from the vendor. Delivery time varies – typically 2–3 weeks.

Restrictions: This item does not ship to a PO Box, APO, FPO, DPO or international address. Expedited shipping is not available.

West Marine will email you when your order ships from the vendor.

This item is currently unavailable.
Enter your email address to be added to the waitlist.
Model # 19462928 Mfg # 000-14490-001
Truck Freight

Truck Freight is used to ship items that exceed standard shipping limitations on weight and/or size. Delivery is only applicable within the contiguous United States. Additional shipping fees apply. Signature required for receipt of shipment.

Warning Hazard shipping
Item Can only Ship to Store

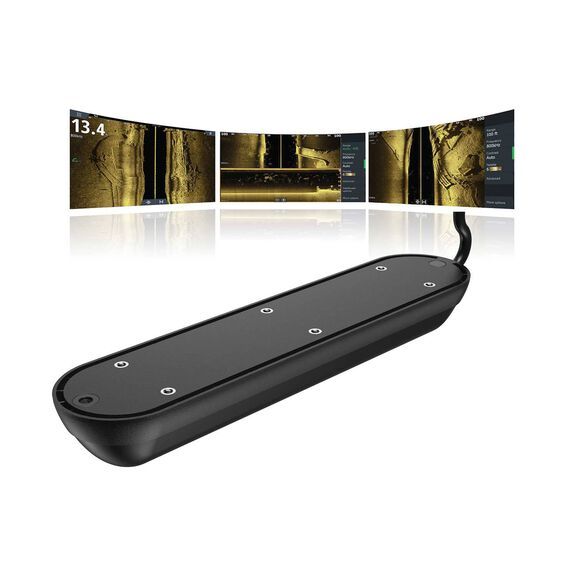

Active Imaging Transducer

Active Imaging is a new scanning sonar technology that provides incredibly detailed, high resolution imaging sonar without sacrificing any range.


  • Active Imaging transducers accomplish this by better directing the SideScan beams which increases resolution and improves range performance.
  • Active Imaging combines the new Active Imaging scanning sonar element for easy single transducer installation
  • Active Imaging sonar offers no compromise high resolution detail to users
  • 800kHz operation covers many use cases and ranges.
Beam Proprietary - Side Scan, DownScan Imaging
Deadrise Angle Any
Frequency SideScan and DownScan: 455 kHz, 800 kHz
Material Urethane
Maximum Depth DownScan:300 ft. , SideScan: 300 ft. side range at 455 kHz
Mount Type Transom Tilt
Sonar SideScan imaging , DownScan imaging , Temperature
Type Transom Mount
