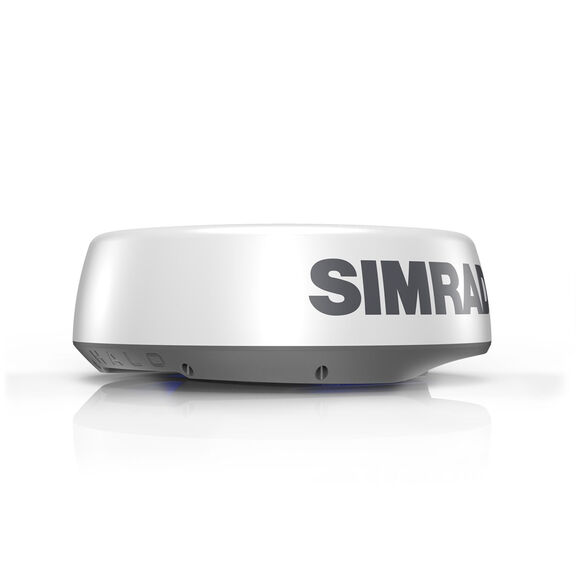

SIMRAD HALO 24" Pulse Compression Dome Radar: Precision Navigation for Sailors

Stay Safe on the Water

Upgrade your sailing experience with the SIMRAD HALO 24" Pulse Compression Dome Radar. Designed for mid-sized to large sailboats, this compact radar delivers exceptional short, mid, and long-range detection, ensuring you have a clear view of your surroundings at all times.

Key Features:

  • Dual Range Mode: Monitor two ranges simultaneously with our patented Dual Range mode. Keep an eye on distant weather cells while also watching for nearby collision hazards, allowing for comprehensive situational awareness.

  • Pulse Compression Technology: Experience high-quality target detection without compromise. HALO24’s pulse compression technology ensures optimal performance at any selected range, while beam sharpening enhances separation between small and distant targets.

  • 360-Degree Sweep: With an industry-first 60 RPM rotation, HALO24 provides a complete 360-degree sweep every second. This ultra-fast update rate gives you nearly real-time visibility at close range, helping to prevent collisions.

  • VelocityTrack™ Doppler Technology: Instantly assess target movement with VelocityTrack™ technology. Color-coded indicators show whether targets are approaching or moving away, enhancing your situational awareness and reducing collision risk. HALO24 automatically tracks all targets within range—no manual selection needed.

  • Instant Wake-Up: HALO24 radar instantly awakens from low-power standby mode, providing immediate high-speed coverage when you need it most. Start-up takes seconds, even if powered down, ensuring you're always ready for action.

  • Lightweight Design: Weighing just 6.75 kg (14.9 lbs), the HALO24 radar’s compact design minimizes yacht inclination, maximizing performance when every second counts.

Specifications:

  • Range: Up to 48 nautical miles
  • Rotation Speed: 60 RPM at ranges up to 2 nautical miles
  • Dome Size: 24 inches
  • Weight: 6.75 kg (14.9 lbs)

Enhance your navigation capabilities with the SIMRAD HALO 24" Pulse Compression Dome Radar. With its advanced features and easy-to-use design, you can sail with confidence, knowing you have the best radar technology at your fingertips. Stay safe and informed on every journey!



Type Radomes
Amperage 0.17 Amps (Standby), 14.5 to 27W (Operating) at 13.8V
Beam 3.9 Degrees H x 22 Degrees V
Dimensions 610mm dia x 225 mm H. (24" dia x 8.9" H)
Maximum Range 48 Nautical Miles
Rotation 60 RPM
Transmit Power 25 Watts
Type Radomes
Voltage 9 - 31.2 VDC (12/24V systems)
Warranty Two Years
Weight 8.9 Pounds
