SIMRAD

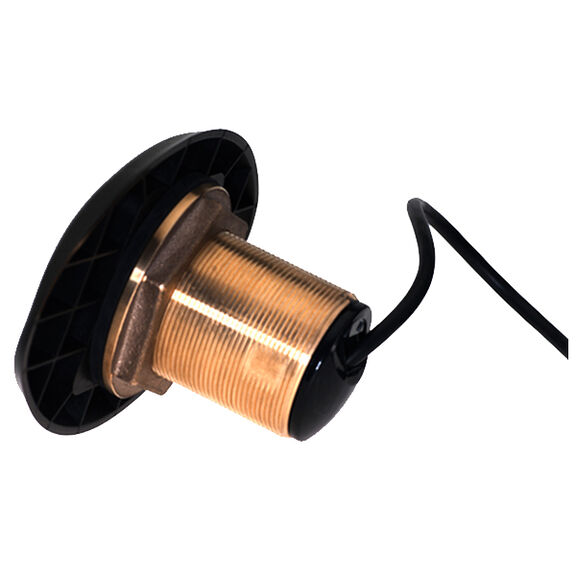

xSonic 12° Tilt Thru-Hull HDI Transducer

xSonic 12° Tilt Thru-Hull HDI Transducer image number 0
SIMRAD
xSonic 12° Tilt Thru-Hull HDI Transducer
4.9 out of 5 Customer Rating
Model # 18259234 Mfg # 000-13906-001
Model # 18259234 Mfg # 000-13906-001
Quantity not available. Please adjust.
Temporarily Out of Stock
Email Icon
Thank you! We'll let you know when it's back in stock.
-
+

The xSonic Bronze HDI (Hybrid Dual Imaging) 0° Tilted Element Transducer provides both traditional sonar (50/200 kHz) and structure frequencies (455/800 kHz) in a sleek bronze thru-hull housing. The bronze HDI Thru-Hull Transducer is capable of reaching depths of 3000 ft. at 50 kHz, 300 ft. at 455 kHz. The 12° tilt is ideal for boats with a 12° to 19° hull deadrise.

Beam 45 Degrees at 50 kHz
Deadrise Angle 12 to 19 Degree
Frequency 50/200 kHz + 455/800 kHz
Material Bronze
Maximum Depth 3000 Feet at 50 kHz , 300 Feet at 455 kHz (Down Imaging)
Mount Type Thru-Hull Flush
Sonar 50/200 kHz Broadband , 455/800 kHz Down Imaging
Transmit Power 600 Watts
Type Thru-Hull
