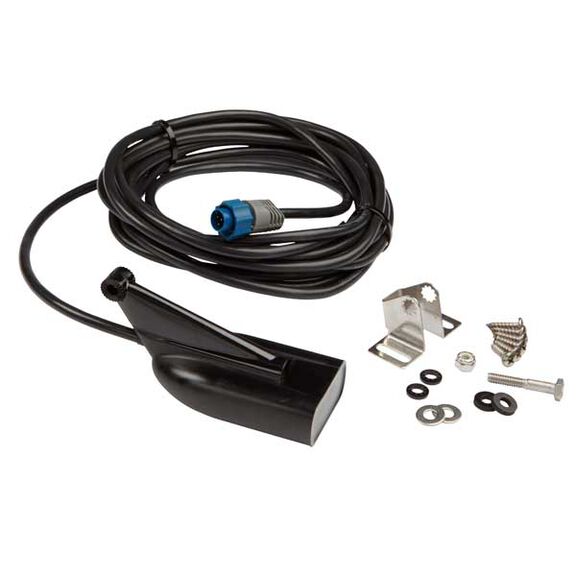

Transom-Mount Hybrid Dual Imaging (HDI) Skimmer Transducer
Model #
14273965
Mfg #
000-10976-001
$135.00
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
Transom-Mount Hybrid Dual Imaging (HDI) Skimmer Transducer
Model #
14273965
Mfg #
000-10976-001
$135.00
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
Quantity not available. Please adjust.
−
+
Complete Your Purchase
All-in-one Broadband Sounder™ and DownScan Imaging capability.
Hybrid Dual Imaging (HDI) Skimmer Transducer uses Broadband Sounder (83/200kHz) plus DownScan Imaging (455/800kHz). The Sounder operates at depths up to 1,000'. The DSI signal features a maximum depth capability of 350'. This unit is compatible with Broadband Sounder sonar of HDS. It also has a removable mounting neck. Includes a stainless steel ratchet system for transom mount. It works with Lowrance Scupper Mount and Lowrance HDI Trolling Motor Adapter.
Key Features
- Works with Elite HDI, HDS Gen2 Touch and NSS evo2 models
- Ideal for inland and inshore coastal angling
- Transducer Frequency: 83/200kHz and 455/800kHz
- Hybrid Dual Imaging (HDI) combines Broadband Sounder and DownScan Imaging capability. Broadband Sounder marks fish arches and tracks lure action.
- DownScan Imaging provides picture-like detail of structure and bottom
- DownScan Imaging Overlay overlays DownScan Imaging onto Broadband Sounder display, separates and clearly exposes fish targets from surrounding structure with fully adjustable overlay transparency and color palettes
- TrackBack Into Sonar History scrolls back sonar history to review covered areas and pinpoint interesting spots
- Includes stainless steel ratchet system
Specifications
- Application: Works with Elite HDI, HDS Gen2 Touch and NSS evo2
- Style: Transom mount
- Cable Length: 20'(6m)
- Monitors: Depth/Temperature
- Material: Plastic
- Transmit Power: 600W (RMS)
- Frequency: 83/200/455/800kHz
- Max. Depth: 1000'/300' (DI)
- Beamwidths: 6.4°/12°
Type
Transom Mount
Beam
Broadband
Deadrise Angle
0 to 20 Degree
Frequency
83/200kHz+ 455/800kHz
Material
Plastic
Maximum Depth
1000 Feet
Sonar
CHIRP Sonar
,
Depth
,
Temperature
Type
Transom Mount
