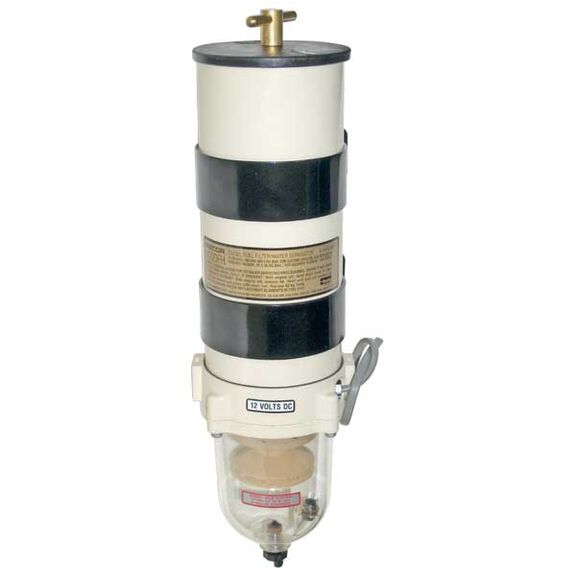

Turbine Series Fuel Filter/Water Separator, 180 GPH, 10-Micron
Model #
402727
Mfg #
1000FV10
$569.99
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
Turbine Series Fuel Filter/Water Separator, 180 GPH, 10-Micron
Model #
402727
Mfg #
1000FV10
$569.99
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
Quantity not available. Please adjust.
−
+
Complete Your Purchase
Extremely effective three stage fuel filtration
Racor has been leading the fuel filter industry for almost 50 years. The turbine series filters remove dirt, rust, algae, and water from fuels in three stages. A centrifuge spins off heavier particulates and water in the first stage. In the next, smaller water droplets bead up on a conical baffle before dropping into the bowl. Finally, finer particulate is removed by the Aquabloc® filter element. Deep pleats and water repellent properties of the Aquabloc® media help to extend service life. The three stage filtration removes almost 100% of the engine damaging water and debris.
Key Features
- Three stage filtration process that removes nearly 100% of water and debris
- Clear polymer sight bowl allows visual inspection of fuel condition
- Drain plug in bowl make removal of accumulated water and debris easy
- Water sensor port in sight bowl for optional alarm
- Powder coated die cast mounting head for corrosion resistance
- Allow for 10" of clearance above filter to remove and replace filter elements
- Not recommended for installations within engine rooms or where filter will be exposed to high heat or flame (for engine room installation use model 108656, Racor 1000MA2)
Specifications
- Application: Diesel
- Flow Rate: 180 gph
- Port Size: 7/8"-14 UNF
- Drain: Yes
- Dimensions: 22"H x 6" x 7"D
This product can expose you to chemicals including Diisononyl phthalate or Carbon black-extracts, which are known to the State of California to cause cancer. For more information go to
www.P65Warnings.ca.gov
Type
Fuel/Water Separators
