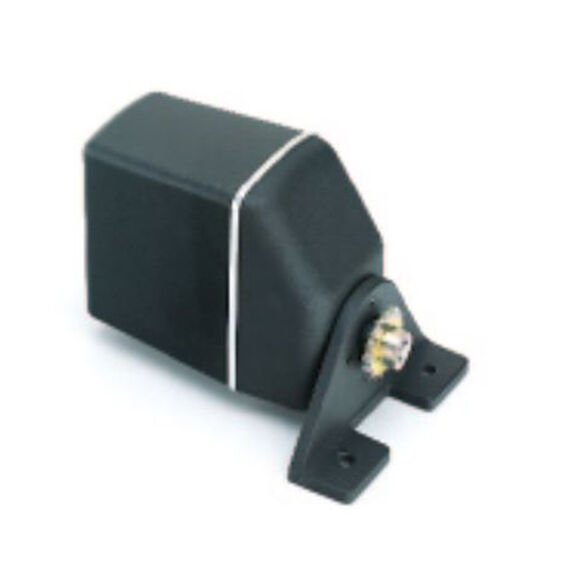

M81135 Mechanical Rotary Type 1 Drive Unit
Model #
315806
Mfg #
M81135
$2,299.99
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
Quantity not available. Please adjust.
−
+
Complete Your Purchase
Rotary drive unit commonly used on sailboats with pedestal steering using a chain and sprocket system.
The Rotary drive is designed for steering systems that can be driven from the helm position through a chain and sprocket (for example: cable and rod steering systems).
Raymarine rotary drive unit provides smooth, powerful autopilot-controlled steering with quiet operation. The main parts of the drive are a rugged electric motor that drives a precision epicyclic gearbox via a high tensile drive belt, and an electromagnetic clutch that transmits high torque loads without slipping.
Specifications
- Max. Boat Displacement: 24,000lb.
- Operating Voltage: 12V DC
- Max Torque: 180 lb.in
- Maximum Shaft Speed: 33rpm
- Average Power: 24-48W
- Hard-over to hard-over time (no load): 10 seconds
- Corepack Used: ACU-200
Notes
- Optional drive sprockets and modification to the steering chain may be require
- An authorized Raymarine dealer is best suited for installing a linear drive system
Type
Rotary Drive
Best Use
Chain and Sprocket Drive
,
Cable and Rod Drive
,
Sailboats Powerboats
Display Color
Grayscale
Drive Type
Rotary
Maximum Boat Displacement
10000 Pounds
Type
Rotary Drive
Warranty
Two Years
