Modular Dual Mounts (top plate sold separately)

Seaview Modular Dual Mounts (top plate sold separately)

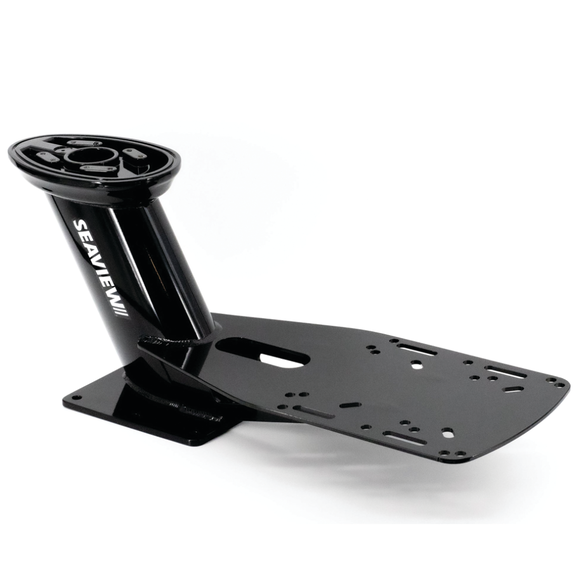

The Seaview PMADM1M2BLK Modular Dual Mount provides a space-saving solution for stacking marine electronics above a closed dome radar. By elevating a satdome, thermal camera, or other device above the radar antenna, this mount eliminates radar interference and ensures maximum performance from all installed electronics. The pre-drilled lower platform accommodates most 18" to 24" closed dome radars from leading brands including Raymarine, Garmin, Furuno, Simrad, Lowrance, and others. The top mounting platform is modular, designed to accept brand- and device-specific top plates (sold separately), allowing future upgrades without replacing the entire mount.

Constructed from high-quality marine-grade aluminum, the PMADM1M2BLK is finished with an anodized primer base coat and a durable black powder coat. The mount features a 30° aft-leaning rake and a hollow oval mast section that allows all electronic cables to route through a single path for a clean, professional installation. A waterproof cable gland is positioned aft and below the top plate. The 10" x 10" base plate keeps the footprint compact, making it ideal for vessels where mounting space is limited.

This mount is light bar ready and compatible with the full range of Seaview modular accessories, including spreaders, wedges, hinges, light bars, and floodlights (all sold separately). The modular top plate design simplifies future equipment changes—only the top plate needs to be swapped when upgrading electronics.

Key Features

• Pre-drilled lower platform fits most 18"–24" closed dome radars
• Modular top platform accepts device-specific top plates (sold separately)
• Hollow oval mast section for simplified, single-hole cable management
• Compact 10" x 10" base plate footprint—ideal for limited mounting space
• Light bar compatible (light bar sold separately)
• Constructed of marine-grade aluminum with anodized primer and black powder coat
• 30° aft rake; 20° aft leaning profile; overall height 13.25"
• Waterproof cable gland positioned aft and below top plate
• Compatible with Seaview spreaders, wedges, hinges, and floodlights (sold separately)
• Not suitable for use with open array radars
• Includes: base gasket/drill template, radar and base plate fastener seals, top plate gasket, light bar positioning dowel, flush plug with O-ring, radar cable grommet, and installation instructions
