WS500 CANBus Terminator

Wakespeed WS500 CANBus Terminator

Reliable data communication is the backbone of any modern marine or off-grid power system. The Wakespeed WS500 Alternator Regulator is a powerful tool for managing complex charging configurations, but its sophisticated operation relies entirely on the integrity of the data it receives. When integrating advanced charging systems, unused network sockets can create signal reflections that disrupt data flow. This dedicated 120-ohm RJ45 plug provides the exact termination required to maintain peak communication performance across your CAN data networking setup.

In any CAN bus network, the physical ends of the data line must be properly closed off to prevent signals from bouncing back and causing data collisions or dropouts. A standard CAN bus network requires exactly two terminators, one at each physical end of the main trunk line. If your Wakespeed WS500 unit sits at the end of this communication line, filling the unused RJ45 port with this termination plug is a critical requirement for functional data exchange. Without adequate termination, the system can experience erratic behaviour, lost packets, and reduced efficiency. Importantly, Wakespeed terminators are not interchangeable with Victron terminators — the Wakespeed regulator uses a crossover cable, and using the wrong terminator can cause a short circuit of the power wires in the network.

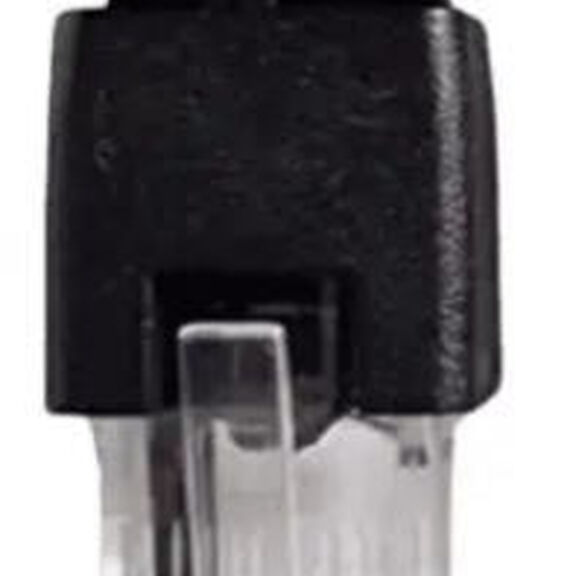

Designed specifically to interface with sophisticated Wakespeed charging networks, this unit delivers precise 120-ohm termination on the exact pins required for optimal operation. The hardware features a clear RJ45 connector paired with a robust black strain relief boot. This construction reduces mechanical stress on the cable and socket, mitigating the risk of disconnection from vibration or movement in mobile environments like boats, caravans, and expedition vehicles.

Advanced alternator regulators constantly transmit and receive critical data such as battery temperature, voltage targets, and charge states. If the network experiences interference due to missing terminators, the regulator may default to conservative charging profiles or fail to synchronise properly with other devices. Adding the correct termination plug ensures that high-speed data networking operates without interruption, allowing maximum performance and lifespan from battery banks. Integrating this component takes only seconds but prevents complex diagnostic problems before they occur.

Key Features

• 120-Ohm Resistor: Delivers precise electrical termination to prevent data line signal reflection

• RJ45 Interface: Standardised plug format for quick, secure connection into open network sockets

• Durable Strain Relief: Integrated black boot protects against mechanical wear and connection fatigue

• Pin Accuracy: Configured to apply termination across the exact pins required by Wakespeed systems

• Vibration Resistant: Built to remain firmly seated during heavy vibration in marine and mobile applications

• Network Compatibility: Not interchangeable with Victron terminators — must be used at the Wakespeed end of the CAN network only
