Sale
Clearance

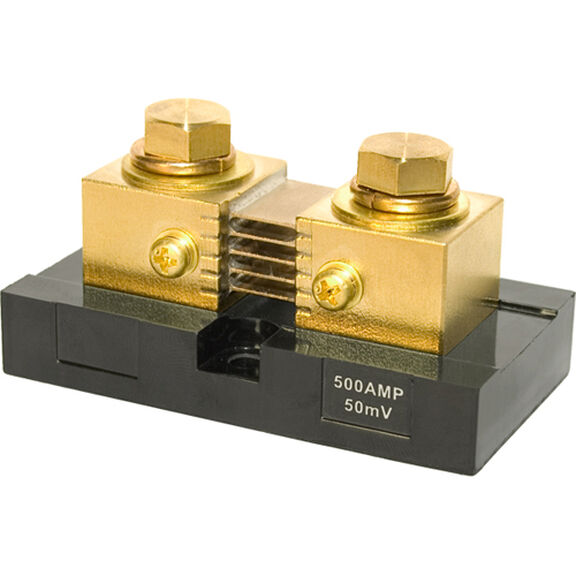

500A/50mV Digital Meter Shunt
Model #
3827151
Mfg #
8255
$14.99
Price reduced from
$84.99
to
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
Sale
Clearance
500A/50mV Digital Meter Shunt
Model #
3827151
Mfg #
8255
$14.99
Price reduced from
$84.99
to
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
Quantity not available. Please adjust.
−
+
Complete Your Purchase
Companion to digital ammeters and multimeters capable of reading up to 500A
Ammeters and multimeters require a shunt to provide amperage information. This Blue Sea Systems shunt is designed to work with digital meters. The large terminal bolts and screws handle the torque to achieve the contact required to ensure accurate amperage readings.
Key Features
- Compatible with digital ammeters and multimeters
- For continuous operation at 66% of capacity
- Lifetime warranty
Specifications
- Continuous Duty: 66% of rated current
- Fill Scale: 50 milivolts
- Intermittent Duty: 300% @ 3 seconds, 100% @ 5 seconds
- Ratio: 500A DC / 50mV DC
- Shunt Type: resistive, manganin metal element
Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Best Use
12 Volt DC Systems
,
24 Volt DC Systems
Type
Shunt
