Don’t get stranded because you ran the battery down too low using the stereo or fishfinder.

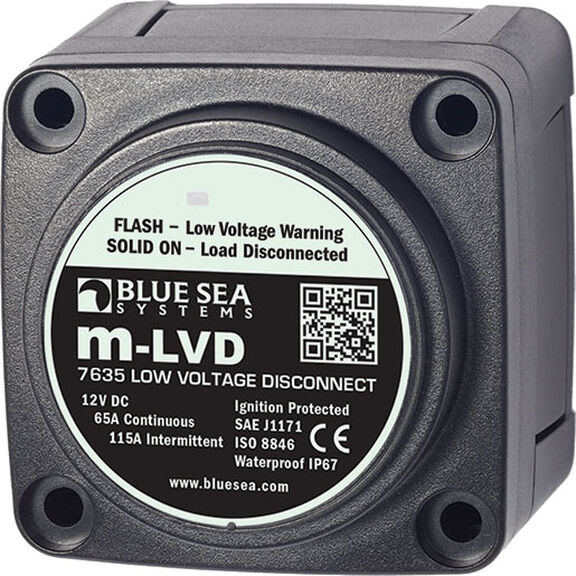

A dead battery is one of the most common reasons for a tow. Avoid having to call for help by installing a low voltage disconnect. The Blue Sea Systems m-LVD senses low battery voltage and automatically disconnects non-essential devices to save power for starting or to preserve battery life. Ideal for any single-battery boat or vehicle whose owner wants to avoid getting stranded with a dead battery.

Key Features

  • Prevents discharging batteries to dangerous levels
  • Remote control switch for convenient operation from the helm
  • Status light in both m-LVD and remote switch provides visual warning of low voltage state prior to disconnect
  • Alarm output available for audible warning of low voltage state prior to disconnect (optional alarm required)
  • Disconnect voltage is adjustable between 11.3V—12.1V
  • Override temporarily delays disconnect by 10 minutes
  • Can be switched OFF
  • Rear insulation isolates contacts to avoid accidental shorts
  • Case design allows surface, front panel, or rear panel mounting
  • Waterproof – rated IP67 for temporary immersion
  • Approvals: CR, IP67, ISO 8846 Marine, SAE J1171 Marine

Instructions

Amperage 65 Amps
Multi Bank Chargers 1 Bank
Type Battery Isolator/Combiners
Voltage 12 Volts DC
