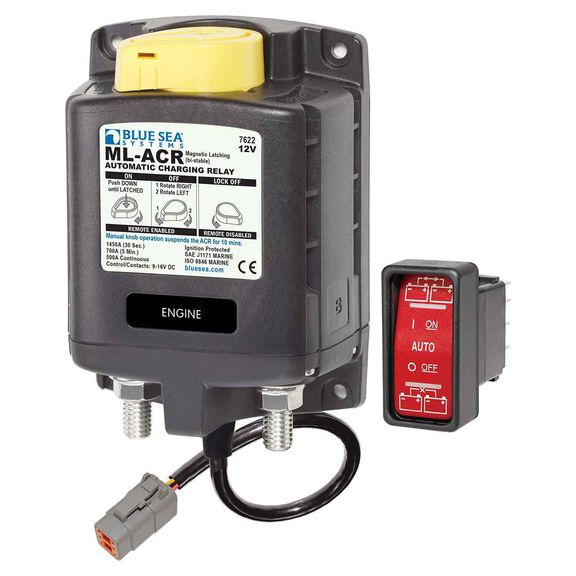

ML-ACR Automatic Charging Relay with Manual Control, 12V

BLUE SEA SYSTEMS ML-ACR Automatic Charging Relay with Manual Control

500 Amp magnetic latching relay automatically combines batteries during charging and isolates batteries when discharging and when starting engine. Magnetic Latching (ML) relay draws very low current in the ON state. Start Isolation (SI) can be configured for temporary isolation of House loads from engine circuit during engine cranking to protect sensitive electronics.

Engine Isolation (EI) can be configured for isolation of two engines while both are running to protect engine electronics and maximize alternator output. Manual override knob provides an added level of safety allowing control with or without power and offering LOCKED OFF capability for servicing. The ML ACR senses charging on two battery banks with LED output to remotely indicate switch state - requires optional LED (sold separately) or Remote Control Contura Switch with integrated LED (included in retail package).

The 3/8"-16 tin-plated copper studs have maximum conductivity and are corrosion resistant. The one-piece stainless flange nuts ensure safe and secure connections silver alloy contacts provide high reliability for live switching. Retail packaging includes a Remote Control Contura Switch.

Features:

• 12V 500 amp ML ACR with Deutsch DTM cable end automatically combines batteries during charging and isolates batteries when discharging and when starting engine
• Magnetic Latching (ML) relay draws very low current in the ON state
• Start Isolation (SI) can be configured for temporary isolation of House loads from Engine circuit during engine cranking to protect sensitive electronics
• Engine Isolation (EI) can be configured for isolation of two engines while both are running to protect engine electronics and maximize alternator output
• Manual override knob provides an added level of safety allowing control with or without power and offering LOCKED OFF capability for servicing
