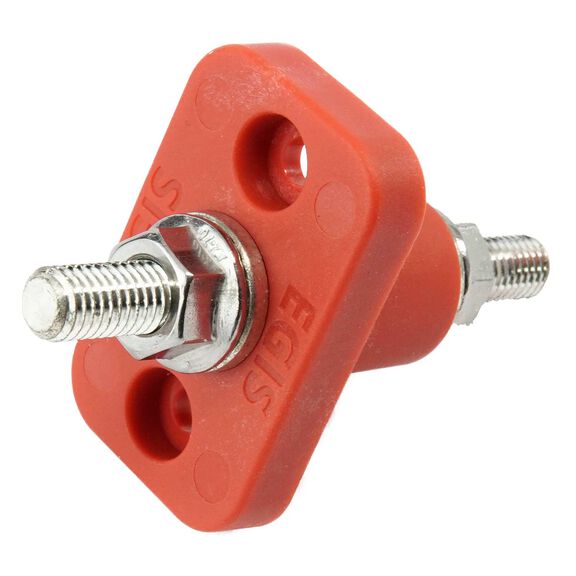

Feed Through Terminal, Red, M8 (5/16")
Model #
21977012
Mfg #
6250-131
$24.99
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
New
Feed Through Terminal, Red, M8 (5/16")
Model #
21977012
Mfg #
6250-131
$24.99
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
Quantity not available. Please adjust.
−
+
Complete Your Purchase
SEAFIT
$1.99
-
$2.99
Price reduced from
$11.49
to
-
Price reduced from
$16.49
to
BLUE SEA SYSTEMS
$24.99
EGIS MOBILE ELECTRIC Feed Through Terminal
Transfers High Current Power through bulkhead walls and decks. Base surface supports full sealing via bedding compound or customer supplied gasket. Tin Plated Copper Alloy Conductor.
Key Features
- All Stainless Steel Hardware with Self-Locking Fasteners
- Robust Design with Insert molded conductors and glass-filled composite insulators
- Stainless Steel Self-Locking Nuts, Mounting Face Can be Gasketed/Bedded for a Water-Tight Install
- Maximum Voltage: 80Vdc
- Maximum Amperage: 250 A
- M8 Nut Recommended Torque: 100 in-lbs (11.3 N-m)
- M8 Nut Maximum Torque: 120 in-lbs (13.6 N-m)
- Mounting Screw Max Torque: 50 in-lbs (5.5 N-m)
- Flex System Compatible with Flex interconnected busbars
- Base Material: Nylon 6 30% GF
- Ingress Protection Rating (Customer required to seal cut-out): IP66 / IP67 / IP6K9K
Compatibility
REPLACES BLUE SEA SYSTEMS #2202
