Airmar® B175 Thru-Hull CHIRP Tranducers
Model #
14390827
Mfg #
010-11939-20
$1,449.99
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
Airmar® B175 Thru-Hull CHIRP Tranducers
Model #
14390827
Mfg #
010-11939-20
$1,449.99
Select a Product:

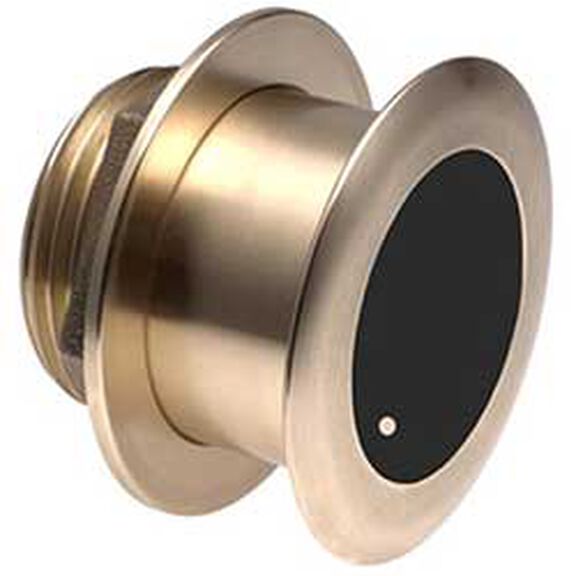

B175M 0° Tilt Thru-Hull Medium CHIRP Transducer
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
Quantity not available. Please adjust.
−
+
Complete Your Purchase
Step up to 1kW of power without need for a fairing.
Step up to 1kW without a fairing with this flush-mounted bronze housing that protrudes less than 1/4" outside the hull and can sit on the trailer rollers/bunks without damage.
The tilted element inside the transducer accommodates all hull deadrises and eliminates the need for a fairing block. And, low, medium and high frequency versions provide maximum flexibility for the choice of frequencies. An excellent choice for fiberglass and wood hulls.
Specifications
- Style: Thru-hull
- Cable Length: 39'
- Connector: 8-pin
- Monitors: Depth/Temperature
- Material: Bronze
- Transmit Power: 1kW (RMS)
| Type | Frequency Range | Beamwidth | Maximum Deadrise Angle | Connector | GARMI# | Model |
|---|---|---|---|---|---|---|
| Airmar B175L (0° Tilt) | Low CHIRP (40-60kHz) | 16°-25° | 0°-7° | 8-pin | 010-11938-20 | 14390793 |
| Airmar B175L (12° Tilt) | Low CHIRP (40-60kHz) | 16°-25° | 8°-15° | 8-pin | 010-11938-21 | 14390801 |
| Airmar B175L (20° Tilt) | Low CHIRP (40-60kHz) | 16°-25° | 16°-24° | 8-pin | 010-11938-22 | 14390819 |
| Airmar B175M (0° Tilt) | Medium CHIRP (85-135kHz) | 11°-16° | 0°-7° | 8-pin | 010-11939-20 | 14390827 |
| Airmar B175M (12° Tilt) | Medium CHIRP (85-135kHz) | 11°-16° | 8°-15° | 8-pin | 010-11939-21 | 14390835 |
| Airmar B175M (20° Tilt) | Medium CHIRP (85-135kHz) | 11°-16° | 16°-24° | 8-pin | 010-11939-22 | 14390843 |
Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Type
Thru-Hull
Beam
11x16 Degrees Medium-Frequency
Deadrise Angle
0 to 7 Degree
Frequency
85/135kHz
Material
Bronze
Maximum Depth
3000 Feet
Sonar
Depth
,
Temperature
Transmit Power
3000 Watts
Type
Thru-Hull
