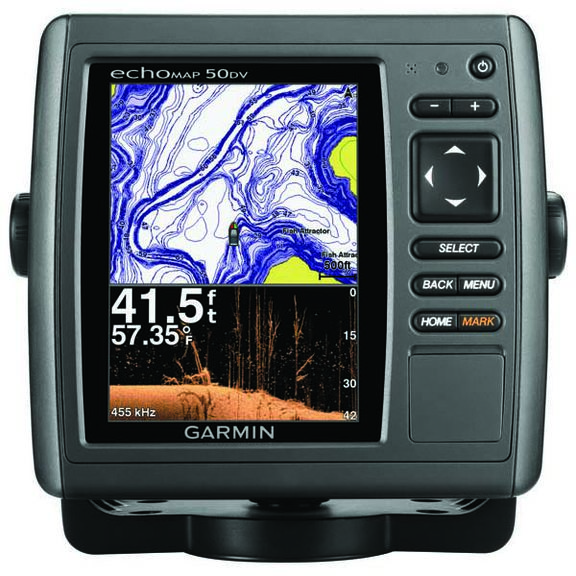

EchoMAP™ 50dv Fishfinder/GPS Combos, US Coastal charts, with Transducer (Transom mount HD-ID™ & DownVü)
Get 5X West Advantage Points on all purchases for a limited time! Not a rewards member? JOIN NOW
echoMAP™ 50dv is a combo with a 5" diagonal display and HD-ID™ sonar plus DownVü™ scanning sonar for a nearly photographic sonar view under your boat. It features a built-in high-sensitivity 10Hz GPS/GLONASS receivers that update your position and heading ten times per second to display fluid vessel movement and dramatically improve your ability to accurately mark and navigate to up to 5,000 waypoints.
It also includes sonar recording that coordinates the timing of the sonar return with your boat’s position and saves digital information on the map. echoMAP™ 50dv features Wi-Fi wireless connectivity with Apple’s iOS device to run Garmin’s BlueChart® Mobile app. It comes preloaded with Garmin U.S. coastal BlueChart cartography. Two microSD® data card slots allow gigabytes of storage. The echoMAP™ 50s and 50dv combos make fishing almost too easy. Almost.
- Display Type: Color TFT LCD
- Screen Size: 5.0"diag.
- Horiz. Pixels: 640
- Vert. Pixels: 480
- Receiver Type: Superfast 10Hz GPS/GLONASS receiver
- Optional Cartography: BlueChart® g2 US Coastal, BlueChart® g2 Vision, LakeVü HD Ultra
- Transmit Power: 500W (RMS)
- Maximum Depth: 1,900' (fresh) 700' (salt)
- Included Accessories: Power/data/sonar cable, Tilt/swivel mount, Flush mount kit, Protective cover, Bezel, 8-pin all-in-one 77/200 kHz HD-ID™/DownVü™ transducer with transom and trolling motor mounts
- Width: 5 7/8"
- Height: 6 1/8"
- Depth: 2 3/8"
- Data Interface: NMEA 0183, WiFi connectivity
- Waterproof Rating: IPX7
- Warranty: One year
What You'll Need
The Garmin 50/200 kHz Traditional Transducers - 8 Pins operate with either 500W, 600W or 1kW transducers, sold separately. Depending on the style of the transducer, you'll get depth, speed and/or temperature readings. To complete your installation, order one of the following transducers:
| Transducer Type | Reading(s) | Max Depth | Power | Material | Model |
|---|---|---|---|---|---|
| Standard Differential 50/200kHz Plastic Transom Mount Transducer (8-pin) (Primary) | Depth/Temperature | 1500' | 500W | Plastic | 13178330 |
| Airmar P66 200/50kHz Plastic Transom Mount Transducer (8-pin) | Depth/Speed/ Temperature |
800-1200' | 600W | Plastic | 13178363 |
| Airmar P79 Adjustable 50/200kHz Plastic In-hull Transducer (8-pin) | Depth | 800-1200' | 600W | Plastic | 13178512 |
| Airmar P319 200/50kHz Plastic Thru-hull Transducer (8-pin) | Depth/Temperature | 800-1200' | 600W | Plastic | 13178389 |
| Airmar B60 Tilted (20°) 50/200kHz Bronze Thru-hull Transducer (8-pin) | Depth/Temperature | 800-1200' | 600W | Bronze | 13178397 |
| Airmar B164 Bronze Tilted (20°) 50/200kHz Thru-hull Transducer (8-pin) | Depth/Speed/ Temperature |
1200-1800' | 1kW | Bronze | 13178454 |
|
|
|||||
The 77/200 kHz Traditional Transducers - 8 Pins operate with 500W transducers, sold separately. Depending on the style of the transducer, you'll get depth, speed and/or temperature readings. To complete your installation, order one of the following transducers:
| Transducer Type | Reading(s) | Max Depth | Power | Material | Model |
|---|---|---|---|---|---|
| Transom/Trolling 77/200kHz Motor Mount Dual-Beam Transducer (8-pin) | Depth/Temperature | 1500' | 500W | Plastic | 14446264 |
| AIRMAR P32 77/200kHz Transom Mount Triducer (8-pin) | Depth/Speed/ Temperature |
900' | 500W | Plastic | 14390744 |
| AIRMAR P72 70/200kHz Transducer (8-pin) | Depth/Temperature | 900' | 500W | Plastic | 14390736 |
| Airmar P19 77/200kHz Tilted (12°) Plastic Thru-Hull Mount Transducer (8-pin) | Depth/Temperature | 900' | 500W | Plastic | 14390751 |
|
|
|||||
| Transducer Type | Reading(s) | Max Depth | Power | Material | Model |
|---|---|---|---|---|---|
| GCV 10 (For 70dv Models Only) | Down View/Side View/Temperature | DV=750'/SV=500' | 500W | Plastic | 14908040 |
| Garmin Down Vu Scanning Transducer | Down View/Temperature | DV=750' | 500W | Plastic | 15094113 |
|
|
|||||
