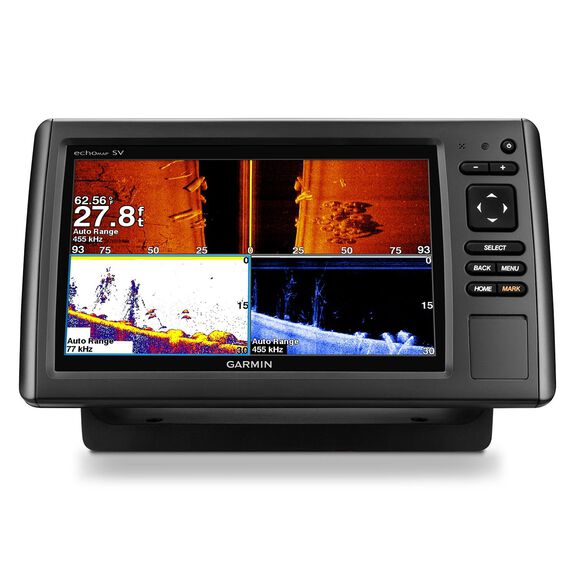

echoMAP92sv™, Chartplotter/Sonar Combo, Worlwide Basemap, No Transducer

The Garmin echoMAP™ series of chartplotter/sonar pushbutton combos have built-in Garmin HD-ID™ traditional sonar plus DownVü: and SideVü: that provides the clearest scanning sonar images on the water. They have the most accurate GPS for its class, and are available preloaded with LakeVü: HD or BlueChart^®: g2 cartography. You simply can't buy a better chartplotter/sonar unit for the money. :

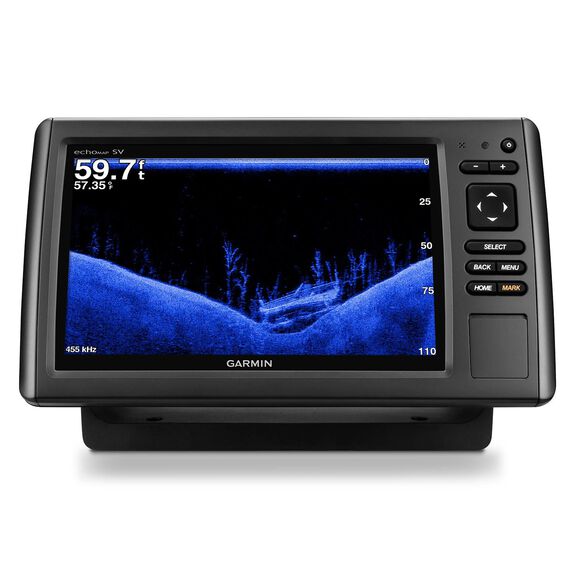

DownVü: scanning sonar is built into echoMAP™ dv combos. DownVü: gives you the clearest, nearly photographic sonar view of what&rsquo:s below your boat. It uses an all-in-one HD-ID™ and DownVü: transducer allowing you to have both traditional and DownVü: images on your screen.

SideVü: scanning sonar, included in echoMAP™ sv combos, gives you a crisp, clear view of what lies up to 750' off to each side of your boat. You clearly see structure, submerged objects and fish. Traditional Garmin HD-ID sonar and both DownVü: and SideVü: scanning sonar are combined into one transducer. Also provides HD-ID support for Minn Kota^®: and MotorGuide^®: trolling motors with integrated transducers.

Specifications

Display Type: Color TFT LCD :
Receiver Type: 5Hz internal GPS/GLONASS :
Dimensions: 11 5/16":W x 6 3/8":H x 2":D
Screen Resolution: 480 x 800px
Screen Size: 9": diagonal

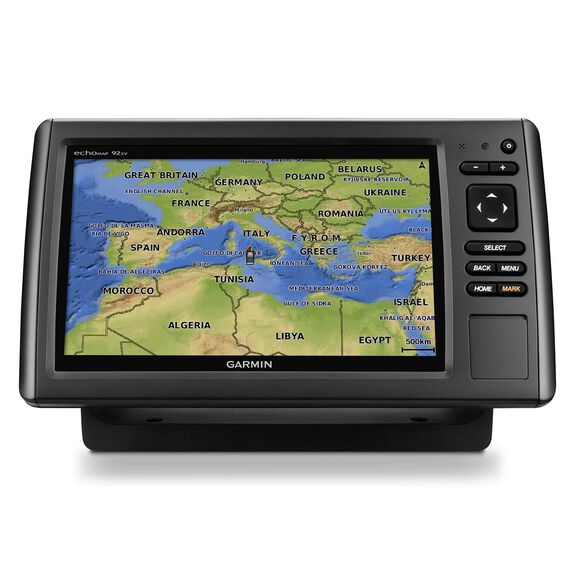

Cartography: Worldwide Basemap
Transmit Power: 500W (RMS)
Transducer: Not included
Maximum Depth: Varies
Frequency: Varies
NMEA Interface: NMEA 0183 :
Waterproof Rating: IPX7 :
Warranty: One year
