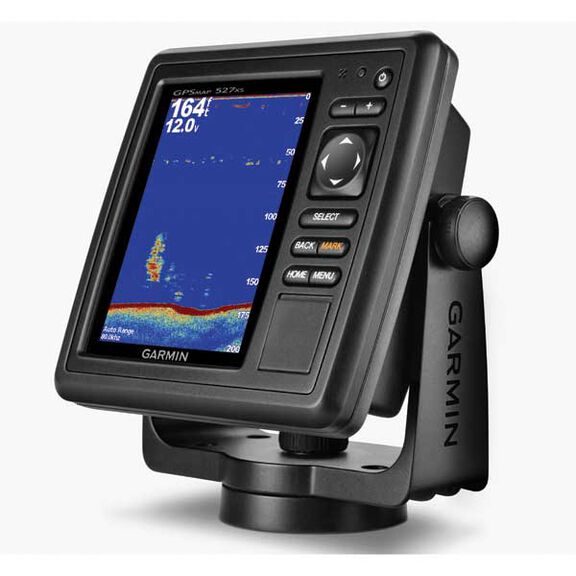

GPSMAP 527xs Fishfinder/GPS Combo with Worldwide Basemap Charts

The premier GPSMAP 5x7 Series chartplotters and fishfinder/GPS combos have 60 percent more processing power than the previous generation for faster zooming and panning. With the integration of the internal high-sensitivity 10Hz GPS/GLONASS receiver, the GPSMAP 5x7 Series displays update position and heading ten times per second, providing significantly smoother on-screen navigation. Accurately mark and navigate to 5000 waypoints. Provides NMEA 2000 support for engine data, sensors, VHF, autopilot and more. Wirelessly connects to Apple iOS device for BlueChart^® Mobile. Two microSD data card slots for gigabytes of storage. This GPSMAP 527xs include built-in worldwide basemap. Although the water may be choppy, navigation won’t be.

See what’s below with HD-ID™ Sonar: HD-ID target tracking technology gives you better separation and definition of images for the clearest possible picture of what lies below. You see fish. You catch fish. Easy.

Experience the advantage of DownVü CHIRP: The sonar technology that you’ve been waiting for is now built into this combo. When used with a compatible CHIRP transducer (sold separately), these combos can display crystal-clear sonar images to help find the next hidden fishing spot, ship wreckage or diving location. With Spread-Spectrum technology, you’ll see unprecedented target separation and resolution at extraordinary depths, and you can dial into specific frequencies to target certain fish species. Bottom contours are more visible and signal noise is suppressed at greater depths to provide a more timely interpretation of what’s below for safer navigation and better fishing.

Capture sonar recording: Sonar recording coordinates the timing of the sonar return with your boat’s position and saves digital information on the map.

• Display Type: Color TFT LCD
• Screen Size: 5.0"diag.
• Horiz. Pixels: 640
• Vert. Pixels: 480
• Receiver Type: Superfast 10Hz GPS/GLONASS receiver
• Optional Cartography: BlueChart® g2, BlueChart® g2 Vision and LakeVü HD Ultra
• Transmit Power: 1kW (RMS)
• Frequency: 25-210kHz (depending on transducer)
• Maximum Depth: 2,000'
• Included Accessories: Power/data cable, Tilt/swivel mount, Flush mount kit, Protective cover
• Width: 5 7/8"
• Height: 6 1/8"
• Depth: 2 3/8"
• Data Interface: NMEA 0183, NMEA 2000
• Waterproof Rating: IPX7
• Warranty: One year

Transducer Options:

This product operates best with these select transducers, sold separately. Depending on the style of the transducer, you'll get depth, speed and/or temperature readings. To complete your installation, order one of the following transducers:

The 77/200 kHz Traditional Transducers - 8 Pins operate with 500W transducers, sold separately. Depending on the style of the transducer, you'll get depth, speed and/or temperature readings. To complete your installation, order one of the following transducers:

Chirp Transducers - economical, includes low, medium and high ranges, entry level solution

The Down View/Side View Transducers - 12 Pins operate with 500W, 600W or 1kW transducers, sold separately. Depending on the style of the transducer, you'll get depth, speed and/or temperature readings. To complete your installation, order one of the following transducers:
