16mm Cheek Pivot Block
Model #
6577134
Mfg #
432
$25.29
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
Quantity not available. Please adjust.
−
+
Complete Your Purchase

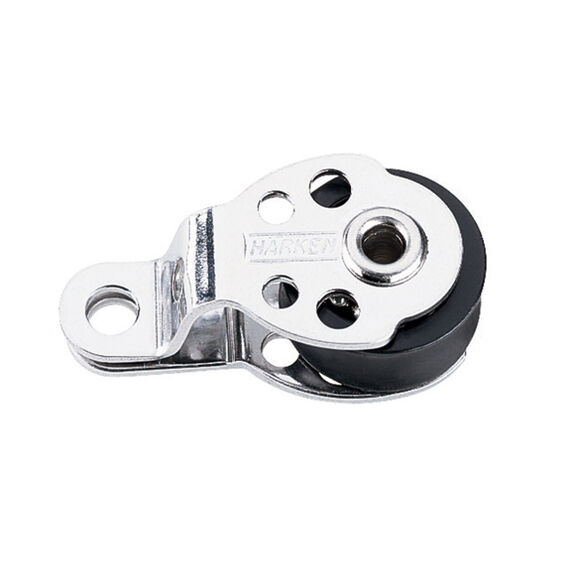

This tiny and unique block pivots on one #8 screw, and has a 5/8" sheave.
16m Blocks have a lightweight design and a unique patented bearing system which uses stainless steel balls in a captive, grooved race. Very high working loads in an extremely lightweight block, with the best strength-to-weight ratios around.
Key Features
- Requires #8 fastener (sold separately)
- Very high working loads in an extremely lightweight block
- Lightweight design and a unique patented bearing system
- Stainless steel ball bearings
- Polished 316 stainless steel top strap
- Sheave Diameter: 5/8" (16 mm)
- Max. Line Diameter: 7/32" (5 mm)
- Max. Working Load (MWL): 250 lb. (113 kg)
- Breaking Load: 750 lb. (359 kg)
- Weight: .38 oz. (11 g)
- Length: 1 3/8" (35 mm)
Becket
No Becket
Diameter
3/16 Inch or 5 mm
Direction
Any
Integral Cleat
No Integral Cleat
Mount Type
Mechanical Fasteners
Ratchet
Non Ratcheting
Safe Working Load
250 Pounds
Type
Single Cheek/Foot
Sheave Diameter
16 mm
