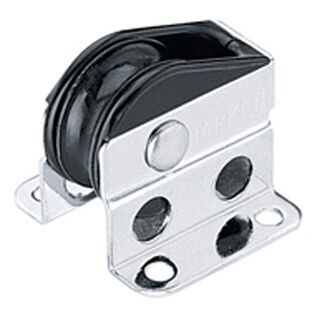

29mm Double Upright Lead Bullet Block
Model #
219543
Mfg #
220
$60.69
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
Quantity not available. Please adjust.
−
+
Complete Your Purchase
This Harken 220 Double Upright Lead Block is often used to lead spinnaker pole lift, cunningham, outhaul and other control lines from the mast base.
Harken designed their low-friction Bullet Blocks to lead control lines aft, but these truly Classic blocks can be found in an endless variety of applications. They are compact and lightweight, with free-running ball bearings that roll on flat races with minimal friction. They deliver dependable fast trim and release under high or low loads.
A range of styles lets these blocks adapt to almost all control line applications. Ideal for cunninghams, vangs, outhauls, traveler controls, spinnaker controls, barberhaulers, etc.
Key Features
- Fixed, stand-up dual lead block for a 90 degree turn
- Used on many types of control systems
- Corrosion-resistant stainless steel straps reinforce these blocks
- Ball bearings, sheave and sideplates are UV stabilized
- Fast trim and release under load: Free-running ball bearings roll on flat races with minimal friction
- Sheave Diameter: 1 1/8" (29 mm)
- Max. Line Diameter: 5/16" (8 mm)
- Max. Working Load (MWL): 400 lb. (181 kg)
- Breaking Load: 2000 lb. (907 kg)
- Weight: 2.25 oz. (64 g)
- Length: 1 1/2" (38 mm)
- Fasteners: Four #10 RH (5 mm)
Ball Bearings
Delrin
Becket
No Becket
Diameter
5/16 Inch
Direction
Any
Integral Cleat
No Integral Cleat
Length
1 1/2 Inches
Mount Type
Mechanical Fasteners
Ratchet
Non Ratcheting
Safe Working Load
400 Pounds
Type
Double Upright
Weight
2.25 Ounces
Sheave Diameter
29 mm
