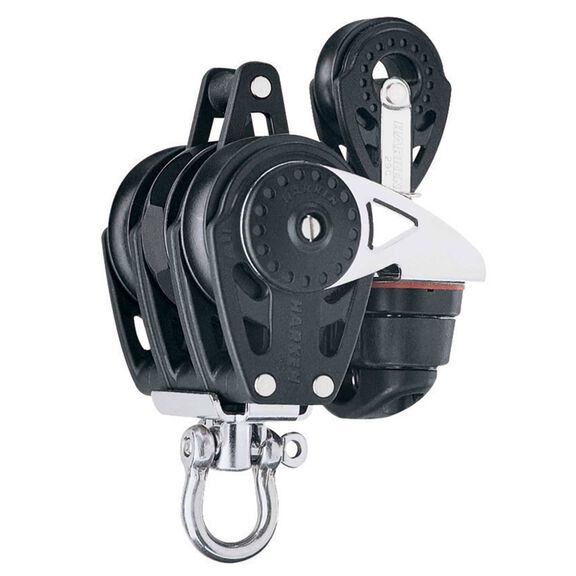

40mm Carbo Ratchet Triple Block with Becket and Cam with 29mm Attachment Block
Complete Your Purchase
Harken 40mm Carbo Ratchet Triple Block with Becket and Cam boasts a 29mm attachment block for complex sets.
Carbo Ratchets blocks allow sailors to hand-hold loaded lines and offer balance between holding power and controlled easing. Lightweight Carbo Ratchets are available in 40mm, 57mm and 75mm sizes. All the Carbo Ratchets feature a recessed On-Off switch that is easily operated from either side. The 40mm cam-arm versions work in ratchet mode only. Commonly 40mm blocks are for jibsheets and spinnakers on small dinghies.
The 40mm, 57mm and 75mm Carbo Ratchamatic® is adjustable for many applications and weather conditions. The load-sensing ratchet block rolls freely in both directions under low loads, then engages the ratchet automatically as loads increase. With 180 degree wrap, you get a 10:1 holding power.
Key Features
- Use for spinnaker sheet systems on dinghies, sportsboats, and small keelboats
- Ratchet blocks are hand and crew savers
- Allows a line to be eased instantly with control
- On/Off switch allows the ratchet to be turned off in light air
- Hardkote-anodized aluminum sheaves
- Stainless steel swivel shackle
- Sheave Diameter: 1 9/16" (40 mm)
- Max. Line Diameter: 3/16" (5 mm)
- Max. Working Load (MWL): 900 lb. (408 kg)
- Breaking Load: 1800 lb. (816 kg)
- Weight: 9.5 oz. (269 g)
- Length: 4 3/4" (121 mm)
