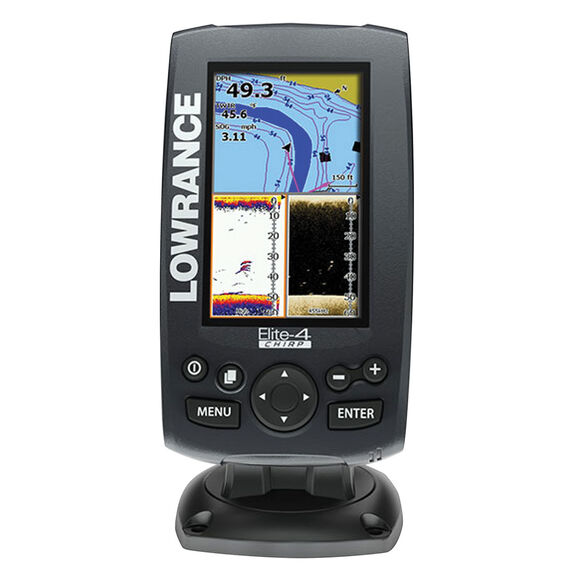

Elite-4 CHIRP Fishfinder/Chartplotter, 83/200kHz + 455/800kHz Transducers
Get 5X West Advantage Points on all purchases for a limited time! Not a rewards member? JOIN NOW
Easy-to-use 4.3"diag. fishfinder/chartplotter that combines CHIRP Sonar with DownScan Imaging™ technology, a super-bright LED-backlit color display, built-in GPS antenna (fishfinder/chartplotters only) and high-definition mapping options. The Elite-4 CHIRP includes all of the proven features of the Elite-4 HDI Series with the addition of CHIRP sonar technology—providing greater sensitivity, improved target resolution and superior noise rejection for clearer, easy-to-see bait fish and game fish targets—all at a surprisingly affordable price. CHIRP sonar makes it easier to identify and distinguish bait and game fish targets, delivers better target identification at greater depths and lets you mark fish clearly at faster boat speeds.
- CHIRP Sonar plus DownScan Imaging™ combines the power of today’s leading fishfinder technologies to provide the best possible view beneath your boat
- Highly accurate, built-in GPS antenna; Includes Navionics + charts with full coastal and inland coverage of the U.S. and Canada, plus the Great Lakes, Alaska, Hawaii and the Bahamas
- Optional chart upgrades include Lake Insight™ and Nautic Insight™ PRO and HD and HotMaps® Premium, Fishing Hotspots® PRO and Jeppesen C-Map Max-N
- Create your own map from real sonar data that you record with Insight Genesis™
- DownScan Overlay™ technology overlays DownScan Imaging onto CHIRP Sonar
- Advanced Signal Processing (ASP) reduces the need to manually adjust settings to see fish, structure and bottom detail more clearly
- TrackBack™ to review recorded sonar history including structure, transitions or fish targets, then pinpoint locations with a waypoint
- New page selector menu with quick access to all features using one-thumb operation
- Multi-Window Display lets you quickly choose from pre-set page layouts—including a three-panel view with chart, CHIRP sonar ranges and DownScan Imaging
Specifications
- Display Type: 16-bit SolarMAX™ PLUS TFT
- Screen Size: 4.3"diag.
- Horizontal Pixels: 272
- Vertical Pixels: 480
- Receiver Type: Internal high-sensitivity WAAS + EGNOS + MSAS (optional external antenna)
- Included Cartography: Navionics+
- Dimensions: 3 13/16"W x 6 5/8"H x 2 3/16"D
- Transducer: Transom mount included
- Maximum Depth: 1000'
- Transmit Power: 250W (RMS)
- Frequency: 83/200 + 455/800kHz
- NMEA Interface: NMEA 0183 output
- Waterproof Rating: IPX7
Transducer Options:
This product operates best with these select transducers, sold separately. Depending on the style of the transducer, you'll get depth, speed and/or temperature readings. To complete your installation, order one of the following transducers:
| Transducer Type: Broadband/CHIRP with Blue Connnector | Reading(s) | Power | Depth | Material | Model |
|---|---|---|---|---|---|
| HST-WSBL Transom-Mount Skimmer™ Transducer | Depth/Temp | 300W | 1,000' | Plastic | 8803595 |
| HST-DFSBL Skimmer™ Transducer with Temperature | Depth/Temp | 600W | 3,000' | Plastic | 8803603 |
| PDT-WBL Trolling Motor or In-Hull Mount Shallow Water | Depth/Temp | 300W | 1,000' | Plastic | 10856003 |
| Transducer Type: Broadband Traditional and HDI with Blue Connector | Reading(s) | Power | Depth | Material | Model |
|---|---|---|---|---|---|
| 455/800 kHz HDI Skimmer XDCR Transom (Primary) | Depth/Temp | N/A | 1,000'/300' (DI) | Plastic | 14273965 |
| 50/200 455/800 kHz HDI Skimmer XDCR Transom 0 Degree (Primary) | Depth/Temp | N/A | 3,000'/300' (DI) | Plastic | 14273957 |
| HDI TH 50/200 455/800 khz 0 degree Thru-Hull | Depth/Temp | 600W | 3,000'/300' (DI) | Bronze | 14706600 |
| HDI TH 50/200 455/800 kHz 12 degree Thru-Hull | Depth/Temp | 600W | 3,000'/300' (DI) | Bronze | 14706618 |
| HDI TH 50/200 455/800 kHz 20 degree Thru-Hull | Temp | 600W | 3,000'/300' (DI) | Bronze | 14706626 |
What You May Want to Add:
| Accessories | Model |
|---|---|
| XT-20BL-20 foot extension cable | 11259322 |
| 7 pin Blue Connector to Bare Wires | 14706568 |
| ST-TBL Speed Temp Sensor | 14272777 |
