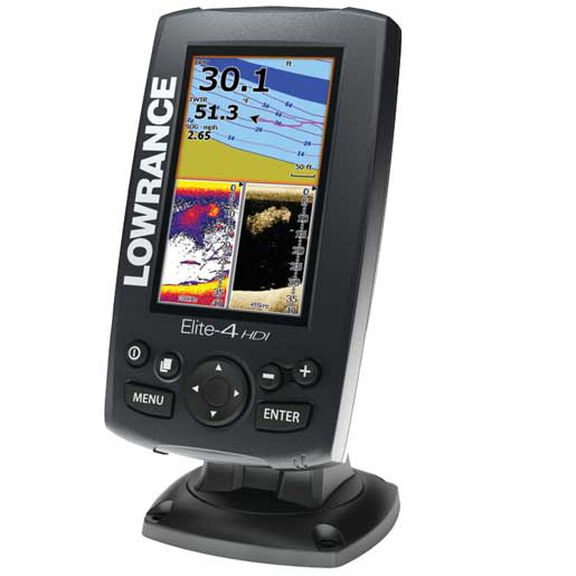

Elite-4 HDI Fishfinder/Chartplotter Combo with No Transducer

Name: Elite-4 HDI Fishfinder/Chartplotter Combo with No Transducer
Brand: LOWRANCE
SKU: 15113582
Price: 75.66 USD
Availability: OutOfStock

Model # 15113582 Mfg # 000-11287-001

Advice & How-To

LOWRANCE

Elite-4 HDI Fishfinder/Chartplotter Combo with No Transducer

Model # 15113582 Mfg # 000-11287-001

Advice & How-To

−

Easy-to-use 4.3-inch fishfinder/chartplotter with Hybrid Dual Imaging™ that combines Broadband Sounder™ with DownScan Imaging™ technology, a super-bright, LED-backlit color display, built-in GPS antenna and support for high-definition mapping.

The compact Elite-4 HDI combines a super-bright, LED-backlit color display and a built-in GPS antenna with a full selection of today’s top-selling fishfinder and chartplotter features that are easy to access and operate -- all at a surprisingly affordable price.

Lowrance-exclusive, high-resolution, 4.3-inch, LED-backlit display with 70% more pixels and 36% more usable screen area than previous Elite-4 series displays.
Exclusive Hybrid Dual Imaging™ (HDI) – Broadband Sounder plus DownScan Imaging™ -- the power of two award-winning technologies combined to provide the best possible view beneath your boat.
Highly accurate, built-in GPS antenna plus a detailed U.S. map featuring more than 3,000 lakes and rivers and coastal contours to 1,000 feet.
Optional chart upgrades include Lake Insight™ and Nautic Insight™ PRO and HD, Navionics^® Gold and HotMaps^® Premium, Fishing Hotspots® PRO and Jeppesen C-Map Max-N.
Create your own map from real sonar data that you record with Insight Genesis™
DownScan Overlay™ technology overlays DownScan Imaging onto Broadband Sounder
Advanced Signal Processing (ASP) reduces the need to manually adjust settings to see fish, structure and bottom detail more clearly
TrackBack™ to review recorded sonar history including structure, transitions or fish targets, then pinpoint locations with a waypoint.
New easy-to-use page selector menu with quick access to all features using one-thumb operation
Multi-Window Display lets you quickly and easily choose from pre-set page layouts -- including a three-panel view with chart, Broadband Sounder and DownScan Imaging.

Specifications:

Display Type: Elite-4 HDI Series: 16-bit SolarMAX™ PLUS TFT
Screen Size: 4.3"diag.
Horizontal Pixels: 272
Vertical Pixels: 480
Receiver Type: Internal high-sensitivity WAAS + EGNOS + MSAS
Dimensions: 3 13/16"W x 6 5/8"H; 7 1/2"H with bracket
Transducer: Transom Mount (sold separately)
Transmit Power: 250W (RMS)
Speed/Temp: Included
NMEA Interface: VHF and autopilot through NMEA 0183
Waterproof Rating: IPX7

Transducer Options:

This product operates best with these select transducers, sold separately. Depending on the style of the transducer, you'll get depth, speed and/or temperature readings. To complete your installation, order one of the following transducers:

Transducer Type: Broadband/CHIRP with Blue Connnector	Reading(s)	Power	Depth	Material	Model
HST-WSBL Transom-Mount Skimmer™ Transducer	Depth/Temp	300W	1,000'	Plastic	8803595
HST-DFSBL Skimmer™ Transducer with Temperature	Depth/Temp	600W	3,000'	Plastic	8803603
PDT-WBL Trolling Motor or In-Hull Mount Shallow Water	Depth/Temp	300W	1,000'	Plastic	10856003

Transducer Type: Broadband Traditional and HDI with Blue Connector	Reading(s)	Power	Depth	Material	Model
455/800 kHz HDI Skimmer XDCR Transom (Primary)	Depth/Temp	N/A	1,000'/300' (DI)	Plastic	14273965
50/200 455/800 kHz HDI Skimmer XDCR Transom 0 Degree (Primary)	Depth/Temp	N/A	3,000'/300' (DI)	Plastic	14273957
HDI TH 50/200 455/800 khz 0 degree Thru-Hull	Depth/Temp	600W	3,000'/300' (DI)	Bronze	14706600
HDI TH 50/200 455/800 kHz 12 degree Thru-Hull	Depth/Temp	600W	3,000'/300' (DI)	Bronze	14706618
HDI TH 50/200 455/800 kHz 20 degree Thru-Hull	Temp	600W	3,000'/300' (DI)	Bronze	14706626
