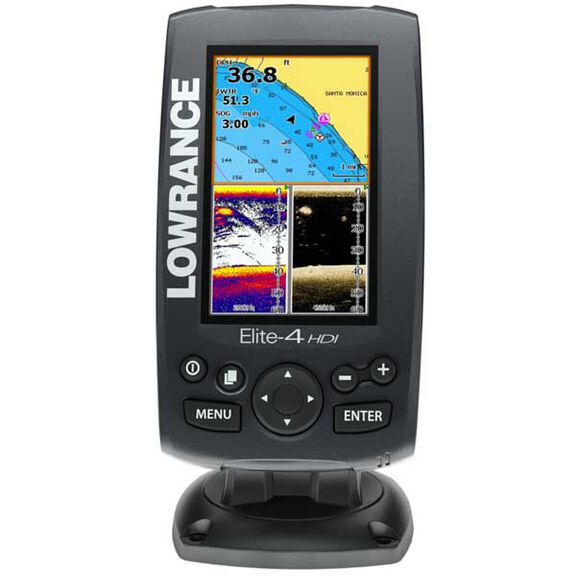

Elite-4 HDI Gold Fishfinder/Chartplotter Combo with No Transducer

Name: Elite-4 HDI Gold Fishfinder/Chartplotter Combo with No Transducer
Brand: LOWRANCE
SKU: 15113731
Price: 199.88 USD
Availability: OutOfStock

Model # 15113731 Mfg # 000-11290-001

Advice & How-To

LOWRANCE

Elite-4 HDI Gold Fishfinder/Chartplotter Combo with No Transducer

Model # 15113731 Mfg # 000-11290-001

Advice & How-To

−

All-NEW easy-to-use 4.3-inch fishfinder/chartplotter with Hybrid Dual Imaging that combines Broadband Sounder with DownScan Imaging technology, a super-bright, LED-backlit color display, built-in GPS antenna and Navionics Gold high-definition mapping.

The compact Elite-4 HDI Gold combines a super-bright, LED-backlit color display and a built-in GPS antenna with a full selection of today's top-selling fishfinder and chartplotter features that are easy to access and operate - all at a surprisingly affordable price - and comes pre-packaged with Navionics Gold cartography.

Features:

Lowrance-exclusive, high-resolution, 4.3-inch, LED-backlit display with 70% more pixels and 36% more usable screen area than previous Elite-4 series displays.
Exclusive Hybrid Dual Imaging (HDI) – Broadband Sounder plus DownScan Imaging - the power of two award-winning technologies combined to provide the best possible view beneath your boat.
Highly accurate, built-in GPS antenna plus a detailed U.S. map featuring more than 3,000 lakes and rivers and coastal contours to 1,000 feet.
Navionics Gold chartcard featuring U.S./Canada/Alaska and Bahamas coastal, Great Lakes and major Canadian lakes detail.
Optional chart upgrades include Lake Insight and Nautic Insight PRO and HD, HotMaps Premium, Fishing Hotspots PRO and Jeppesen C-Map Max-N.
Create your own map from real sonar data that you record with Insight Genesis.
DownScan Overlay technology overlays DownScan Imaging onto Broadband Sounder.
Advanced Signal Processing (ASP) reduces the need to manually adjust settings to see fish, structure and bottom detail more clearly.
TrackBackTM to review recorded sonar history including structure, transitions or fish targets, then pinpoint locations with a waypoint.
New easy-to-use page selector menu with quick access to all features using one-thumb operation.
Multi-Window Display lets you quickly and easily choose from pre-set page layouts - including a three-panel view with chart, Broadband Sounder and DownScan Imaging.

Specifications:

Display Type: Elite-4 HDI Series: 16-bit SolarMAX™ PLUS TFT
Screen Size: 4.3"diag.
Horizontal Pixels: 272
Vertical Pixels: 480
Receiver Type: Internal high-sensitivity WAAS + EGNOS + MSAS
Dimensions: 3 13/16"W x 6 5/8"H; 7 1/2"H with bracket
Transducer: Transom Mount (sold separately)
Transmit Power: 250W (RMS)
Speed/Temp: Included
NMEA Interface: VHF and autopilot through NMEA 0183
Waterproof Rating: IPX7

Transducer Options:

This product operates best with these select transducers, sold separately. Depending on the style of the transducer, you'll get depth, speed and/or temperature readings. To complete your installation, order one of the following transducers:

Transducer Type: Broadband/CHIRP with Blue Connnector	Reading(s)	Power	Depth	Material	Model
HST-WSBL Transom-Mount Skimmer™ Transducer	Depth/Temp	300W	1,000'	Plastic	8803595
HST-DFSBL Skimmer™ Transducer with Temperature	Depth/Temp	600W	3,000'	Plastic	8803603
PDT-WBL Trolling Motor or In-Hull Mount Shallow Water	Depth/Temp	300W	1,000'	Plastic	10856003

Transducer Type: Broadband Traditional and HDI with Blue Connector	Reading(s)	Power	Depth	Material	Model
455/800 kHz HDI Skimmer XDCR Transom (Primary)	Depth/Temp	N/A	1,000'/300' (DI)	Plastic	14273965
50/200 455/800 kHz HDI Skimmer XDCR Transom 0 Degree (Primary)	Depth/Temp	N/A	3,000'/300' (DI)	Plastic	14273957
HDI TH 50/200 455/800 khz 0 degree Thru-Hull	Depth/Temp	600W	3,000'/300' (DI)	Bronze	14706600
HDI TH 50/200 455/800 kHz 12 degree Thru-Hull	Depth/Temp	600W	3,000'/300' (DI)	Bronze	14706618
HDI TH 50/200 455/800 kHz 20 degree Thru-Hull	Temp	600W	3,000'/300' (DI)	Bronze	14706626
