This product is not longer available, we recommend a similar product instead:
Clearance
Elite-4x HDI Fishfinder with No Transducer
Model #
15113632
Mfg #
000-11296-001
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.

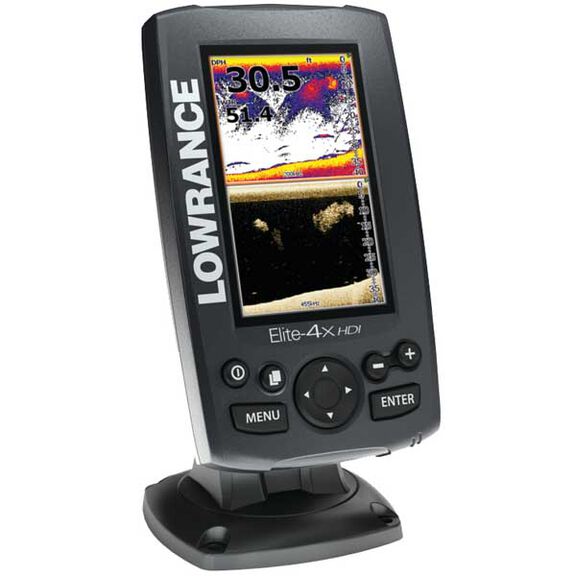

Elite-4x HDI Fishfinder with No Transducer
Model #
15113632
Mfg #
000-11296-001
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
−
+
All-NEW easy-to-use 4.3-inch fishfinder with Hybrid Dual Imaging that combines Broadband Sounder with DownScan Imaging technology and a super-bright, LED-backlit color display.
The compact Elite-4x HDI combines a super-bright, LED-backlit color display with a full selection of today's top-selling fishfinder features that are easy to access and operate - all at a surprisingly affordable price.
Features:
- Lowrance-exclusive, high-resolution, 4.3-inch, LED-backlit display with 70% more pixels and 36% more usable screen area than previous Elite-4 series displays.
- Exclusive Hybrid Dual Imaging (HDI) – Broadband Sounder plus DownScan Imaging - the power of two award-winning technologies combined to provide the best possible view beneath your boat.
- DownScan Overlay technology overlays DownScan Imaging onto Broadband Sounder.
- Advanced Signal Processing (ASP) reduces the need to manually adjust settings to see fish, structure and bottom detail more clearly.
- TrackBack to review recorded sonar history including structure, transitions or fish targets.
- New easy-to-use page selector menu with quick access to all features using one-thumb operation.
- Multi-Window Display lets you quickly and easily choose from pre-set page layouts - including a three-panel view.
Specifications:
- Display Type: 16-bit SolarMAX™ PLUS TFT
- Screen Size: 4.3"diag.
- Horizontal Pixels: 272
- Vertical Pixels: 480
- Dimensions: 3 13/16"W x 6 5/8"H; 7 1/2"H with bracket
- Transducer: Transom Mount
- Transmit Power: 250W (RMS)
- Speed/Temp: Included
- Waterproof Rating: IPX7
Transducer Options:
This product operates best with these select transducers, sold separately. Depending on the style of the transducer, you'll get depth, speed and/or temperature readings. To complete your installation, order one of the following transducers:
| Transducer Type: Broadband/CHIRP with Blue Connnector | Reading(s) | Power | Depth | Material | Model |
|---|---|---|---|---|---|
| HST-WSBL Transom-Mount Skimmer™ Transducer | Depth/Temp | 300W | 1,000' | Plastic | 8803595 |
| HST-DFSBL Skimmer™ Transducer with Temperature | Depth/Temp | 600W | 3,000' | Plastic | 8803603 |
| PDT-WBL Trolling Motor or In-Hull Mount Shallow Water | Depth/Temp | 300W | 1,000' | Plastic | 10856003 |
| Transducer Type: Broadband Traditional and HDI with Blue Connector | Reading(s) | Power | Depth | Material | Model |
|---|---|---|---|---|---|
| 455/800 kHz HDI Skimmer XDCR Transom (Primary) | Depth/Temp | N/A | 1,000'/300' (DI) | Plastic | 14273965 |
| 50/200 455/800 kHz HDI Skimmer XDCR Transom 0 Degree (Primary) | Depth/Temp | N/A | 3,000'/300' (DI) | Plastic | 14273957 |
| HDI TH 50/200 455/800 khz 0 degree Thru-Hull | Depth/Temp | 600W | 3,000'/300' (DI) | Bronze | 14706600 |
| HDI TH 50/200 455/800 kHz 12 degree Thru-Hull | Depth/Temp | 600W | 3,000'/300' (DI) | Bronze | 14706618 |
| HDI TH 50/200 455/800 kHz 20 degree Thru-Hull | Temp | 600W | 3,000'/300' (DI) | Bronze | 14706626 |
What You May Want to Add:
| Accessories | Model |
|---|---|
| XT-20BL-20 foot extension cable | 11259322 |
| 7 pin Blue Connector to Bare Wires | 14706568 |
| ST-TBL Speed Temp Sensor | 14272777 |
Type
Fishfinder
Diagonal Screen Size
4.3"
Dimensions
3 13/16" Width x 6 5/8" Height x 2 3/16" Depth
Display Color
Color
Display Shape
Vertical
Display Type
16-Bit SolarMAX PLUS TFT
Frequency
50/200 kHz
Maximum Depth
2000 Feet
Mount Type
Quick Disconnect
Resolution
272 x 480
Specific Transducer
Lowrance Skimmer Transom
Transmit Power
250 Watts
Type
Fishfinder
Warranty
One Year
Waterproof
Waterproof
