Elite-5X CHIRP Fishfinder, No transducer

Name: Elite-5X CHIRP Fishfinder, No transducer
Brand: LOWRANCE
SKU: 15631443
Price: 199.99 USD
Availability: OutOfStock

Model # 15631443 Mfg # 000-11653-001

Advice & How-To

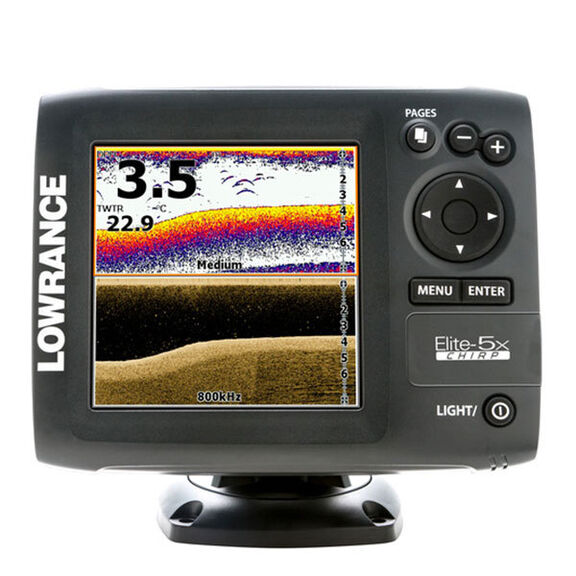

Elite-5X CHIRP Fishfinder, No transducer image number 0

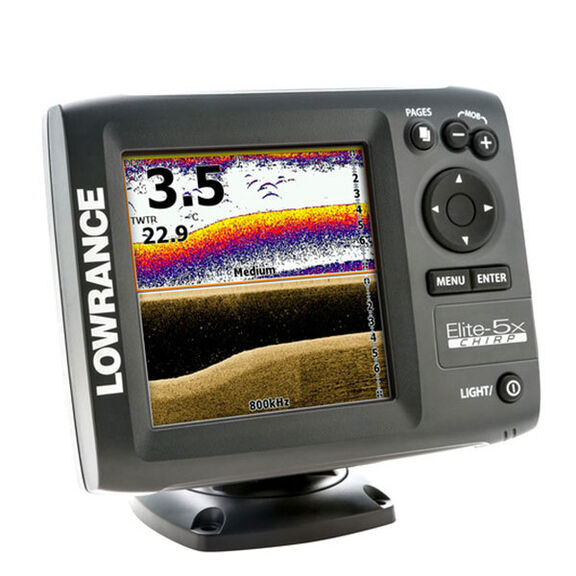

Elite-5X CHIRP Fishfinder, No transducer image number 1

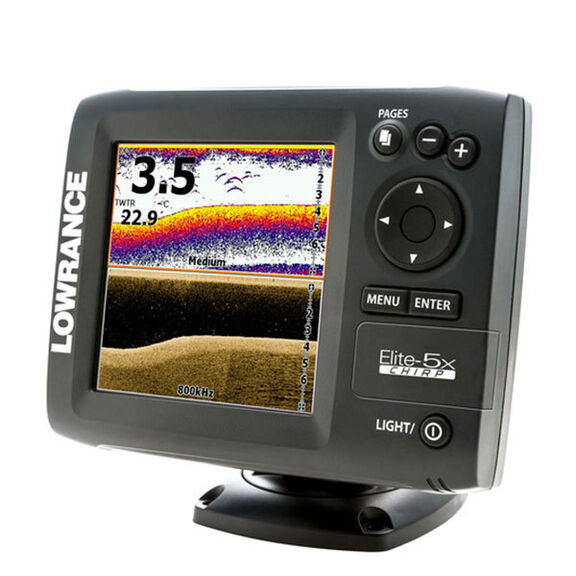

Elite-5X CHIRP Fishfinder, No transducer image number 2

LOWRANCE

Elite-5X CHIRP Fishfinder, No transducer

Model # 15631443 Mfg # 000-11653-001

Advice & How-To

−

The Elite-5x CHIRP includes all of the proven features recently launched with the highly successful Elite-5x HDI with the addition of CHIRP sonar technology -- providing greater sensitivity, improved target resolution and superior noise rejection for clearer, easy-to-see bait fish and game fish targets.

Features:

CHIRP sonar advantages:
Easier to identify and distinguish bait and game fish targets
Better target identification at greater depths
Mark fish clearly at faster boat speeds
View multiple CHIRP sonar settings on one display
DownScan Imaging™ provides picture-like images of fish-holding structure beneath a boat.
Selectable single-frequency sonar operation with award-winning Broadband Sounder™ performance.
High-resolution, 5-inch color display
DownScan Overlay™ technology overlays DownScan Imaging onto CHIRP Sonar
Advanced Signal Processing (ASP) reduces the need to manually adjust settings to see fish, structure and bottom detail more clearly
TrackBack™ to review recorded sonar history including structure, transitions or fish targets.
New page selector menu with quick access to all features using one-thumb operation
Multi-Window Display lets you quickly choose from pre-set page layouts - including a three-panel view.

Overview

Display: 5 in./12.7 cm Full VGA SolarMAX PLUS Color
Resolution: 256-color TFT 480 x 480
Power Output: RMS (PTP) Max 500W RMS
Operating Frequency: 455/800 kHz (DownScan Imaging™), Low, Med, High (CHIRP), 50 kHz/83kHz/200kHz
Languages: 30
Operating Voltage: 12 vDC (10-17 vDC min-max)

Sonar

Max Depth per Type

DownScan Imaging™ at 455 kHz: Max 300 ft / 91 m
CHIRP Sonar High Range/200 kHz: 1,000 ft / 305 m
CHIRP Sonar Med Range/83 kHz: 1000 ft / 305 m
CHIRP Sonar Low Range/50 kHz: 3,000 ft/914 m

Specifications

Depth Alarm: Yes
EchoSounder Frequencies: 83/200 kHz + 455/800 kHz
Shallow Alarm: Yes
Temperature Readings: Yes
Transducer Type: None
Display Resolution: 480 x 480
Display Type: 256-color SolarMAX™ PLUS TFT
Display Backlighting: LED
Backlighting Levels: Adjustable Screen And Keypad
Display Size: 5 inches / 127 mm
Waterproof Standard/rating: IPx7
Product Width: 6.9 in \ 174 mm
Product Depth: 2.5 in \ 63 mm
Product Height: 5.4 in \ 136 mm
Power Supply (Supply Voltage): 12 vDC (10-17 vDC min-max)
NMEA Output: NMEA 0183
Languages: 30
Output Power [kW]: 12 W (0.9 A @ 13 vDC)

Transducer Options:

This product operates best with these select transducers, sold separately. Depending on the style of the transducer, you'll get depth, speed and/or temperature readings. To complete your installation, order one of the following transducers:

Transducer Type: Broadband/CHIRP with Blue Connnector	Reading(s)	Power	Depth	Material	Model
HST-WSBL Transom-Mount Skimmer™ Transducer	Depth/Temp	300W	1,000'	Plastic	8803595
HST-DFSBL Skimmer™ Transducer with Temperature	Depth/Temp	600W	3,000'	Plastic	8803603
PDT-WBL Trolling Motor or In-Hull Mount Shallow Water	Depth/Temp	300W	1,000'	Plastic	10856003

Transducer Type: Broadband Traditional and HDI with Blue Connector	Reading(s)	Power	Depth	Material	Model
455/800 kHz HDI Skimmer XDCR Transom (Primary)	Depth/Temp	N/A	1,000'/300' (DI)	Plastic	14273965
50/200 455/800 kHz HDI Skimmer XDCR Transom 0 Degree (Primary)	Depth/Temp	N/A	3,000'/300' (DI)	Plastic	14273957
HDI TH 50/200 455/800 khz 0 degree Thru-Hull	Depth/Temp	600W	3,000'/300' (DI)	Bronze	14706600
HDI TH 50/200 455/800 kHz 12 degree Thru-Hull	Depth/Temp	600W	3,000'/300' (DI)	Bronze	14706618
HDI TH 50/200 455/800 kHz 20 degree Thru-Hull	Temp	600W	3,000'/300' (DI)	Bronze	14706626
