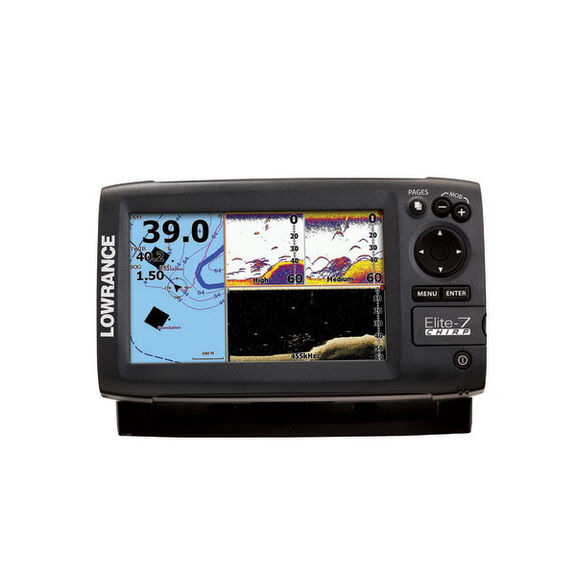

Elite-7 CHIRP Fishfinder/Chartplotter Combo, without Transducer
The Elite CHIRP Series includes all of the proven features of the Elite HDI Series with the addition of CHIRP Sonar technology—providing greater sensitivity, improved target resolution, and superior noise rejection for clearer, easy-to-use baitfish and gamefish targets.
Elite-7 CHIRP Fishfinder/Chartplotter is a 7" diagonal combo that harnesses CHIRP Sonar with DownScan Imaging™. CHIRP sonar makes it easier to identify and distinguish bait and gamefish targets, provides better target identification at greater depths, and allows you to mark fish clearly at faster boat speeds.
Highly accurate built-in GPS antenna plus detailed US map: Featuring more than 3,000 lakes and rivers, Lowrance technology allows you to create your own map from real sonar data that you record with Insight Genesis™ (200kHz recommended for sonar recording). Optional chart upgrades include Lake Insight™ and Nautic Insight™ PRO, as well as HD, Navionics® Gold and Jeppessen C-Map Max-N.
Combined CHIRP sonar with DownScan Imaging Technology: DownScan Imaging™ provides picture-like images of fish-holding structure beneath your boat. Display CHIRP Sonar and DownScan Imaging in split-screen view, or combine them in full-screen mode using DownScan Overlay™.
Advanced fishfinding plus ease of use: TrackBack™ to rewind recorded sonar history including structure, transitions or fish targets, then pinpoint locations with a waypoint (on chartplotter models). Page Selector menu provides quick access to all features using one-thumb operation, and multi-window display lets you quickly choose from pre-set page layouts—including a three-panel view with chart, CHIRP sonar options and DownScan Imaging.
How Multiple CHIRP sonar settings provide clarity
Multiple CHIRP ranges from a single transducer: Because Lowrance fishfinders give you the option of using more than one CHIRP Sonar signal, it’s important to understand which one is right for your fishing situation.
High CHIRP frequency selection: Most frequently used for freshwater as well as more shallow coastal areas. It provides the greatest detail for tracking smaller objects, like your lure, or identifying game fish from bait fish, as well as game fish that are near structure or on the bottom.
Medium CHIRP frequency selection: Wide coverage makes this frequency best for covering large areas while searching for structure or fish. However, this option is not as detailed as High CHIRP and will not penetrate as deep as Low CHIRP.
Low CHIRP frequency selection: Provides the greatest depth performance, while marking fish targets throughout the entire water column.
- Display Type: SolarMax™ Plus 256-color
- Screen Size: 7" diagonal
- Screen Resolution: 800 x 480
- Included Cartography: Enhanced US Lakes
- Optional Cartography: Lake Insight™ and Nautic Insight™ PRO and HD, Navionics® HotMaps® Premium, Fishing Hotspots® PRO and Jeppessen C-Map Max-N
- Receiver Type: Internal high-sensitivity WAAS + EGNOS + MSAS
- NMEA Interface: NNEA 0183 and NMEA 2000
- Frequency: 455/800kHz (DownScan Imaging™), Low, Med, High (CHIRP), 83/200kHz (Narrow Band)
- Transducer: Sold separately
- Maximum Depth: DownScan Imaging™ at 455kHz: Max 300', CHIRP Sonar High Range/200kHz: 1,000', CHIRP Sonar Med Range/83kHz: 1000', CHIRP Sonar Low Range: 3,000'
- Dimensions: 9 1/4"W x 5 15/16"H x 3"D
- Waterproof Rating: IPX7
Transducer Options:
This product operates best with these select transducers, sold separately. Depending on the style of the transducer, you'll get depth, speed and/or temperature readings. To complete your installation, order one of the following transducers:
| Transducer Type: Broadband/CHIRP with Blue Connnector | Reading(s) | Power | Depth | Material | Model |
|---|---|---|---|---|---|
| HST-WSBL Transom-Mount Skimmer™ Transducer | Depth/Temp | 300W | 1,000' | Plastic | 8803595 |
| HST-DFSBL Skimmer™ Transducer with Temperature | Depth/Temp | 600W | 3,000' | Plastic | 8803603 |
| PDT-WBL Trolling Motor or In-Hull Mount Shallow Water | Depth/Temp | 300W | 1,000' | Plastic | 10856003 |
| Transducer Type: Broadband Traditional and HDI with Blue Connector | Reading(s) | Power | Depth | Material | Model |
|---|---|---|---|---|---|
| 455/800 kHz HDI Skimmer XDCR Transom (Primary) | Depth/Temp | N/A | 1,000'/300' (DI) | Plastic | 14273965 |
| 50/200 455/800 kHz HDI Skimmer XDCR Transom 0 Degree (Primary) | Depth/Temp | N/A | 3,000'/300' (DI) | Plastic | 14273957 |
| HDI TH 50/200 455/800 khz 0 degree Thru-Hull | Depth/Temp | 600W | 3,000'/300' (DI) | Bronze | 14706600 |
| HDI TH 50/200 455/800 kHz 12 degree Thru-Hull | Depth/Temp | 600W | 3,000'/300' (DI) | Bronze | 14706618 |
| HDI TH 50/200 455/800 kHz 20 degree Thru-Hull | Temp | 600W | 3,000'/300' (DI) | Bronze | 14706626 |
What You May Want to Add:
| Accessories | Model |
|---|---|
| XT-20BL-20 foot extension cable | 11259322 |
| 7 pin Blue Connector to Bare Wires | 14706568 |
| ST-TBL Speed Temp Sensor | 14272777 |
