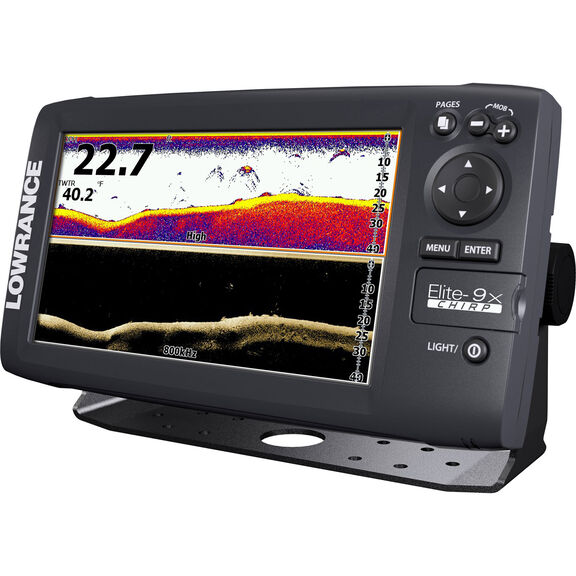

Elite-9x CHIRP Fishfinder, No Transducer

The Elite-9x CHIRP Fishfinder provides improved target resolution and superior noise rejection for clearer, easy-to-see baitfish and game fish targets. By displaying two user-selected ranges simultaneously, anglers can more easily observe better target separation at greater depths and mark fish clearly at higher boat speeds.

When combined with the Lowrance HDI Skimmer transducer, the Elite-9 CHIRP can also display a DownScan Imaging™ view of the area beneath the boat, for picture-like views of fish-holding structure. The Lowrance exclusive DownScan Overlay™ combines DownScan Imaging with CHIRP Sonar for a brilliant presentation that clearly exposes fish targets from surrounding structure. With TrackBack™, anglers are able to scroll back in recorded sonar history to review structure, transitions and fish targets and mark locations with a waypoint—reducing the time required to search for productive fishing areas.

Lowrance CHIRP Advantages

Until CHIRP, most fishfinders used a single-frequency signal, considered to be the sonar standard for marking depths as well as fish targets. And, 200 kHz is generally considered a good single-frequency option for shallow- to mid-range depths (to around 300') and 50 kHz is a good option for greater depths. Although Lowrance sonar is considered to be the best fishfinder in the world, single-frequency operation does have its drawbacks.

For example, to increase sensitivity, you increase clutter on the display—both near the surface and in the water column. But, if you reduce sensitivity, you could miss fish targets. Because CHIRP sonar uses multiple frequencies at once, you are able to see fish targets better than ever before. Individual game fish are now more easily identified in or around bait schools, and game fish are more easily seen when holding near structure or the bottom. You also get the clear benefit of a clutter-free display. And, all of these advantages are available whether you’re fishing an inland lake, or off the coast on a deeper saltwater trip.

Lowrance CLARITY Advantages

Multiple CHIRP settings from a single transducer: Because Lowrance fishfinders give you the option of using more than one CHIRP Sonar signal, it's important to understand which one is right for your fishing situation.

High CHIRP frequency selection: Most frequently used for freshwater as well as more shallow coastal areas. It provides the greatest detail for tracking smaller objects, like your lure, or identifying game fish from bait fish, as well as game fish that are near structure or on the bottom.

Meduim CHIRP frequency selection: Wide coverage makes this frequency best for covering large areas while searching for structure or fish. However, this option is not as detailed as High CHIRP and will not penetrate as deep as Low CHIRP.

Low CHIRP frequency selection: Provides the greatest depth performance, while marking fish targets throughout the entire water column.

• Display Type: 16-bit color TFT
• Screen Size: 9" diagonal
• Screen Resolution: 800 x 480
• Dimensions: 11 1/16"W x 6 5/8"H x 3 1/8"D
• Transmit Power: Max 500W RMS (analog equivalent)
• Maximum Depth: DownScan Imaging™ at 455kHz: Max 300'; CHIRP High Range/200kHz: 1,000'; CHIRP Med Range/83kHz: 1,000'; CHIRP Low Range/50kHz: 3,000'
• Transducer: Sold separately
• NMEA Interface: None
• Waterproof Rating: IPX7

Transducer Options:

This product operates best with these select transducers, sold separately. Depending on the style of the transducer, you'll get depth, speed and/or temperature readings. To complete your installation, order one of the following transducers:
